US 12,206,880 B2
Multiview view position supplementary enhancement information message
Byeongdoo Choi, Palo Alto, CA (US); Stephan Wenger, Hillsborough, CA (US); Xiang Li, Saratoga, CA (US); and Shan Liu, San Jose, CA (US)
Assigned to Tencent America LLC, Palo Alto, CA (US)
Filed by Tencent America LLC, Palo Alto, CA (US)
Filed on Jun. 27, 2022, as Appl. No. 17/850,581.
Claims priority of provisional application 63/215,944, filed on Jun. 28, 2021.
Prior Publication US 2022/0417543 A1, Dec. 29, 2022
Int. Cl. H04N 19/44 (2014.01); H04N 19/169 (2014.01); H04N 19/172 (2014.01); H04N 19/46 (2014.01); H04N 19/597 (2014.01)
CPC H04N 19/44 (2014.11) [H04N 19/172 (2014.11); H04N 19/188 (2014.11); H04N 19/46 (2014.11); H04N 19/597 (2014.11)] 20 Claims

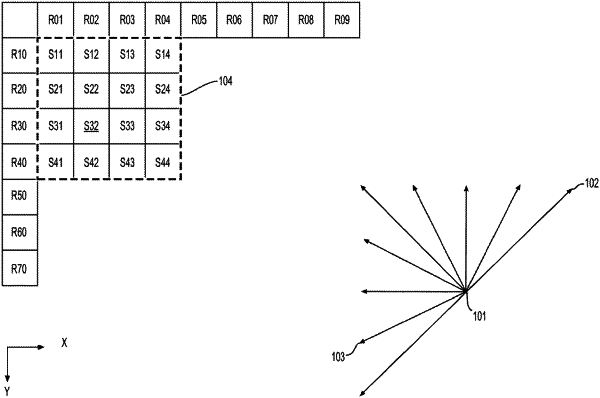

OG exemplary drawing

1. A method for video decoding in a video decoder, comprising:
decoding, from a bitstream, pictures associated with views of respective layers in a coded video sequence (CVS);
determining, based on a first supplemental enhancement information (SEI) message and a second SEI message, positions of the views to be displayed in one dimension, the first SEI message including scalability dimension information (SDI) and the second SEI message including multiview view position (MVP) information; and
displaying the decoded pictures based on the positions of the views in the one dimension,
wherein the MVP information includes (i) number of views information that indicates a number of views that is derived from the SDI in the first SEI message and (ii) view position information that indicates an order of the views associated with view identifiers indicated by the SDI in the first SEI message.
