US 12,206,743 B2
Control device, control method, and storage medium
Yuki Sawai, Kanagawa (JP)
Assigned to CANON KABUSHIKI KAISHA, Tokyo (JP)
Filed by CANON KABUSHIKI KAISHA, Tokyo (JP)
Filed on May 17, 2023, as Appl. No. 18/318,856.
Claims priority of application No. 2022-093022 (JP), filed on Jun. 8, 2022.
Prior Publication US 2023/0403335 A1, Dec. 14, 2023
Int. Cl. H04L 67/52 (2022.01); H04L 51/222 (2022.01); H04L 67/12 (2022.01); H04L 67/55 (2022.01)
CPC H04L 67/52 (2022.05) [H04L 51/222 (2022.05); H04L 67/12 (2013.01); H04L 67/55 (2022.05)] 12 Claims

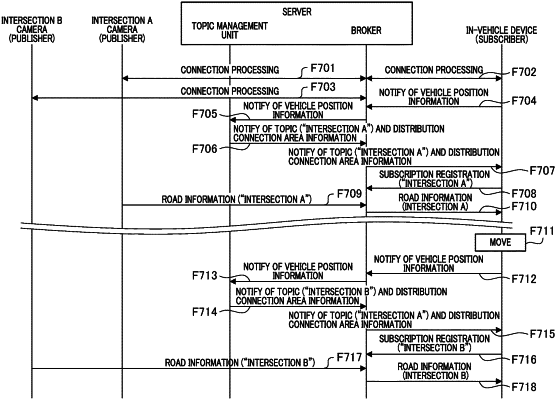

OG exemplary drawing

1. A control method for a control device mounted on a movable apparatus, comprising:
acquiring position information of the movable apparatus;
notifying an information processing device of the position information acquired in the position information acquisition;
acquiring, from the information processing device, distribution connection area information corresponding to the position information notified in the position information notification;
transmitting any one of a subscription registration request and a subscription cancellation request to the information processing device on the basis of an area indicated by the distribution connection area information acquired in the distribution connection area acquisition and a position indicated by the position information acquired in the position information acquisition;
receiving a published message transmitted from the information processing device in response to the request transmitted in the transmission; and
determining an area to connect to the information processing device based on the distribution connection area information,
wherein the distribution connection area information is information indicating a connection area of a distribution range corresponding to a communication area of a base station, and the distribution connection area corresponds to an area provided, wherein the movable apparatus receives distribution of information before reaching the distribution range in consideration of delays including a delay in communication between the control device and the base station and a processing time of the control device.
