US 12,206,740 B2
System and method for transferring a client connection
John R. B. Woodworth, Amissville, VA (US); and Dean Ballew, Sterling, VA (US)
Assigned to CenturyLink Intellectual Property LLC, Denver, CO (US)
Filed by CenturyLink Intellectual Property LLC, Broomfield, CO (US)
Filed on Sep. 28, 2022, as Appl. No. 17/936,134.
Claims priority of provisional application 63/294,437, filed on Dec. 29, 2021.
Prior Publication US 2023/0208923 A1, Jun. 29, 2023
Int. Cl. H04L 67/148 (2022.01); H04L 9/40 (2022.01); H04L 61/5007 (2022.01); H04L 67/141 (2022.01)
CPC H04L 67/148 (2013.01) [H04L 61/5007 (2022.05); H04L 63/0428 (2013.01); H04L 67/141 (2013.01)] 18 Claims

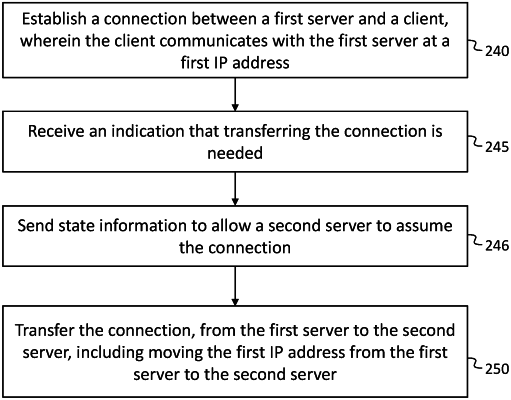

OG exemplary drawing

1. A method, comprising:
establishing a connection between a first server and a client, wherein the client communicates with the first server at a first Internet protocol (IP) address;
sending, by the first server, state information to allow a second server to assume the connection; and
transferring the connection, from the first server to the second server, including moving the first IP address from the first server to the second server,
wherein moving the first IP address from the first server to the second server comprises maintaining, by a first cluster agent on the first server, a pool of movable IP addresses, including the first IP address, and transferring the first IP address to a second cluster agent on the second server.
