US 12,206,654 B2
Method for authenticating access network device, and related device
Li Chen, Shanghai (CN)
Assigned to HUAWEI TECHNOLOGIES CO., LTD., Shenzhen (CN)
Filed by HUAWEI TECHNOLOGIES CO., LTD., Guangdong (CN)
Filed on Jan. 31, 2022, as Appl. No. 17/589,242.
Application 17/589,242 is a continuation of application No. PCT/CN2020/084142, filed on Apr. 10, 2020.
Claims priority of application No. 201910703626.1 (CN), filed on Jul. 31, 2019.
Prior Publication US 2022/0159458 A1, May 19, 2022
Int. Cl. H04L 9/40 (2022.01); H04W 12/06 (2021.01); H04W 12/08 (2021.01); H04W 12/61 (2021.01)
CPC H04L 63/08 (2013.01) [H04W 12/06 (2013.01); H04W 12/08 (2013.01); H04W 12/61 (2021.01)] 19 Claims

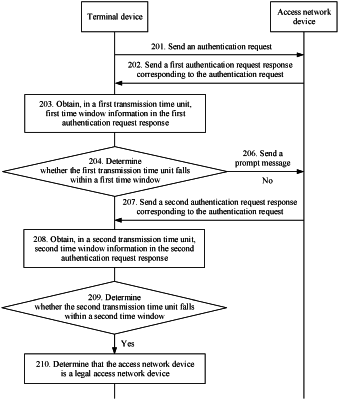

OG exemplary drawing

1. A method for authenticating an access network device, comprising:
sending, by a terminal device, an authentication request to the access network device;
receiving, by the terminal device in a first transmission time interval, a first authentication request response in response to the authentication request, wherein the first authentication request response includes first time window information indicating a time range in which the terminal device receives the first authentication request response;
obtaining the first time window information in the first authentication request response, wherein a first time window indicated by the first time window information comprises at least one transmission time interval; and
determining, by the terminal device, that the access network device is a legal access network device when the terminal device determines that the first transmission time interval falls within the first time window.
