US 12,206,536 B2
Method and device for applying phase rotation optimized for wide band in wireless LAN system
Eunsung Park, Seoul (KR); Jinyoung Chun, Seoul (KR); Jinsoo Choi, Seoul (KR); and Dongguk Lim, Seoul (KR)
Assigned to LG ELECTRONICS INC., Seoul (KR)
Filed by LG ELECTRONICS INC., Seoul (KR)
Filed on Feb. 23, 2024, as Appl. No. 18/585,684.
Application 18/585,684 is a continuation of application No. 17/914,067, previously published as PCT/KR2021/003998, filed on Mar. 31, 2021.
Claims priority of application No. 10-2020-0043557 (KR), filed on Apr. 9, 2020.
Prior Publication US 2024/0267270 A1, Aug. 8, 2024
This patent is subject to a terminal disclaimer.
Int. Cl. H04L 27/26 (2006.01); H04L 1/00 (2006.01); H04W 84/12 (2009.01)
CPC H04L 27/2603 (2021.01) [H04L 1/0069 (2013.01); H04L 27/2621 (2013.01); H04W 84/12 (2013.01)] 17 Claims

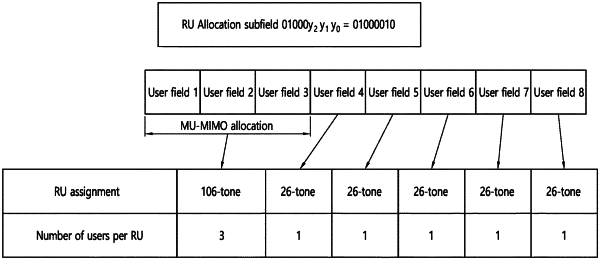

OG exemplary drawing

1. A method in a wireless local area network (WLAN) system, the method comprising:
receiving, by a receiving station (STA), a Physical Protocol Data Unit (PPDU) from a transmitting STA; and
decoding, by the receiving STA, the PPDU,
wherein the PPDU includes a legacy preamble, first and second signal fields,
wherein a first phase rotation value is applied to the legacy preamble and the first and second signal fields for a 320 MHz band, and
wherein the first phase rotation value is [1 −1 −1 −1 1 −1 −1 −1 1 −1 −1 −1 −1 1 1 1].
