US 12,206,271 B2
Battery charge control device and method
Young Deok Kim, Daejeon (KR); Dae Soo Kim, Daejeon (KR); and Hyun Jun Choi, Daejeon (KR)
Assigned to LG ENERGY SOLUTION, LTD., Seoul (KR)
Appl. No. 17/629,708
Filed by LG ENERGY SOLUTION, LTD., Seoul (KR)
PCT Filed Jan. 29, 2021, PCT No. PCT/KR2021/001231
§ 371(c)(1), (2) Date Jan. 24, 2022,
PCT Pub. No. WO2021/154043, PCT Pub. Date Aug. 5, 2021.
Claims priority of application No. 10-2020-0012123 (KR), filed on Jan. 31, 2020.
Prior Publication US 2022/0278540 A1, Sep. 1, 2022
Int. Cl. H02J 7/00 (2006.01)
CPC H02J 7/0048 (2020.01) [H02J 7/0063 (2013.01); H02J 7/00712 (2020.01)] 15 Claims

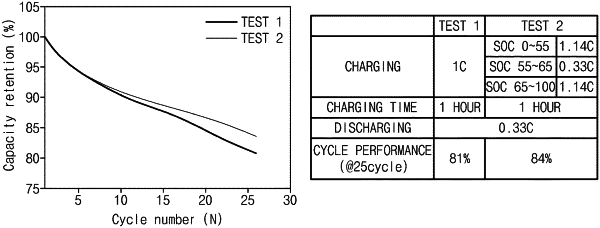

OG exemplary drawing

1. A battery charge and discharge control device comprising:
a state-of-charge (SOC) measurer configured to measure a SOC of a battery; and
a charge controller configured to control a charging speed of the battery in response to the SOC of the battery being included in a preset SOC section,
wherein the preset SOC section has a change in resistance or a change in potential due to ions inserted into a material constituting the battery equal to or greater than a reference value,
wherein the charge controller controls a charging speed of the battery before and after the preset SOC section to be higher than the charging speed of the battery during the preset SOC section, and
wherein the charging speed of the battery before and after the preset SOC section are approximately identical to each other.
