US 12,206,214 B2
Crimp contact, crimp connection and method for making a crimp connection
Olivier De Cloet, Bensheim (DE); Uwe Bluemmel, Bensheim (DE); Daniel Volkmann, Bensheim (DE); Turgay Yilmaz, Bensheim (DE); Michael Delp, Bensheim (DE); Erik Glombitza, Bensheim (DE); and Karl Zhung-Wei Choi, Bensheim (DE)
Assigned to TE Connectivity Germany GmbH, Bensheim (DE)
Filed by TE Connectivity Germany GmbH, Bensheim (DE)
Filed on May 11, 2022, as Appl. No. 17/741,851.
Claims priority of application No. 102021112505.7 (DE), filed on May 12, 2021.
Prior Publication US 2022/0368039 A1, Nov. 17, 2022
Int. Cl. H01R 4/20 (2006.01)
CPC H01R 4/20 (2013.01) 15 Claims

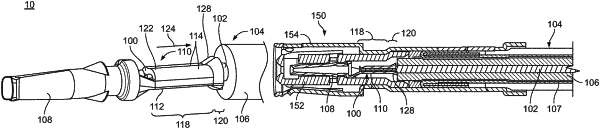

OG exemplary drawing

1. A crimp contact, comprising:
a crimp barrel having a crimp base, a pair of crimp shoulders, a crimp region, and an impedance matching region, the crimp shoulders in the crimp region form a longitudinal seam when bent around an electrical conductor, an outer surface of the crimp barrel in the impedance matching region has a gradual expansion along a direction of the longitudinal seam, the gradual expansion is an entirety of the outer surface of the crimp barrel in the impedance matching region, the crimp barrel has a protrusion extending from the gradual expansion in a longitudinal direction along the electrical conductor.
