US 12,206,095 B2
Electrode for rechargeable energy storage device
Vincent Caldeira, Grenoble (FR); Julien Thiel, Arbusigny (FR); Marian Chatenet, Meylan (FR); Laëtitia Dubau, Grenoble (FR); and François Lacoste, Neuilly-sur-Seine (FR)
Assigned to EASYL ZINC, Sainte-Hélène-du-Lac (FR); and CENTRE NATIONAL DE LA RECHERCHE, Paris (FR)
Appl. No. 17/434,948
Filed by EASYL, Bonneville (FR); and CENTRE NATIONAL DE LA RECHERCHE SCIENTIFIQUE, Paris (FR)
PCT Filed Feb. 27, 2020, PCT No. PCT/FR2020/050395
§ 371(c)(1), (2) Date Aug. 30, 2021,
PCT Pub. No. WO2020/178509, PCT Pub. Date Sep. 10, 2020.
Claims priority of application No. 1902150 (FR), filed on Mar. 1, 2019.
Prior Publication US 2022/0149356 A1, May 12, 2022
Int. Cl. H01M 4/36 (2006.01); H01M 4/24 (2006.01); H01M 4/48 (2010.01); H01M 4/62 (2006.01); H01M 4/66 (2006.01); H01M 4/72 (2006.01); H01M 10/30 (2006.01); H01M 50/417 (2021.01); H01M 50/44 (2021.01); H01M 4/02 (2006.01)
CPC H01M 4/366 (2013.01) [H01M 4/24 (2013.01); H01M 4/244 (2013.01); H01M 4/48 (2013.01); H01M 4/622 (2013.01); H01M 4/661 (2013.01); H01M 4/72 (2013.01); H01M 10/30 (2013.01); H01M 50/417 (2021.01); H01M 50/44 (2021.01); H01M 2004/021 (2013.01)] 20 Claims

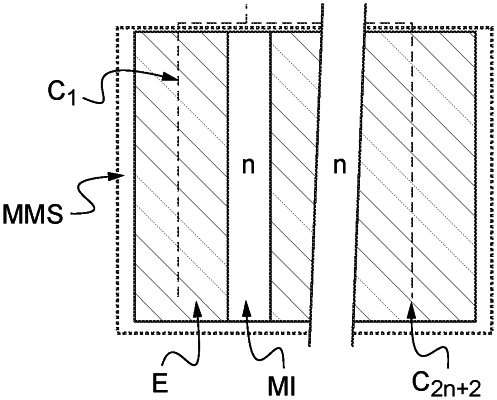

OG exemplary drawing

1. An electrode for a rechargeable energy storage device, the electrode comprising:
a plurality of inner layers interposed between two outer layers, said inner layers comprising a plurality of electrode material layers ME composed of at least one electrode active material and a plurality of porous current collector layers CC composed of electrically conductive material whose electronic conductivity is greater than or equal to 102 S·cm−1, said layers of electrode material ME and current collector CC being alternated,
wherein said outer layers do not consist of said porous current collector layers CC, and
wherein said electrode has a total thickness more than 4 mm.
