US 12,206,094 B2
Silicon-carbon composite anode material, and preparation method and use thereof
Xia Fan, Guangdong (CN); Changdong Li, Guangdong (CN); Zhenhua Zhang, Guangdong (CN); Linlin Mao, Guangdong (CN); Dingshan Ruan, Guangdong (CN); and Yong Cai, Guangdong (CN)
Assigned to GUANGDONG BRUNP RECYCLING TECHNOLOGY CO., LTD., Foshan (CN); HUNAN BRUNP RECYCLING TECHNOLOGY CO., LTD., Changsha (CN); and HUNAN BRUNP EV RECYCLING CO., LTD., Changsha (CN)
Filed by GUANGDONG BRUNP RECYCLING TECHNOLOGY CO., LTD., Guangdong (CN); HUNAN BRUNP RECYCLING TECHNOLOGY CO., LTD., Hunan (CN); and HUNAN BRUNP EV RECYCLING CO., LTD., Hunan (CN)
Filed on Sep. 26, 2023, as Appl. No. 18/372,711.
Application 18/372,711 is a continuation of application No. PCT/CN2022/092461, filed on May 12, 2022.
Claims priority of application No. 202110962970.X (CN), filed on Aug. 20, 2021.
Prior Publication US 2024/0014382 A1, Jan. 11, 2024
Int. Cl. H01M 4/36 (2006.01); B09B 3/35 (2022.01); B09B 3/70 (2022.01); H01M 4/38 (2006.01); H01M 4/587 (2010.01); H01M 10/0525 (2010.01); H01M 10/54 (2006.01); B09B 101/16 (2022.01); H01M 4/02 (2006.01)
CPC H01M 4/364 (2013.01) [B09B 3/35 (2022.01); B09B 3/70 (2022.01); H01M 4/386 (2013.01); H01M 4/587 (2013.01); H01M 10/0525 (2013.01); H01M 10/54 (2013.01); B09B 2101/16 (2022.01); H01M 2004/021 (2013.01); H01M 2004/027 (2013.01)] 15 Claims

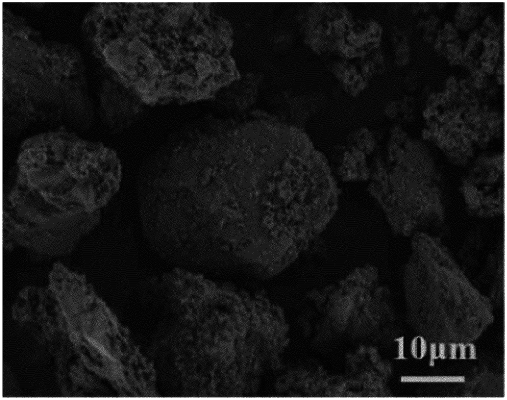

OG exemplary drawing

1. A preparation method of a silicon-carbon composite anode material, comprising the following steps:
(S1) dissolving a graphite anode powder in an acid solution, and conducting solid-liquid separation- to obtain a precipitate; and washing and drying the precipitate, adding a reducing agent, and subjecting a resulting mixture to heat treatment to obtain a purified graphite material; wherein the heat treatment is heating the resulting mixture of a dried precipitate and the reducing agent in a chlorine atmosphere; and
(S2) mixing a modified silicon powder with the graphite material, adding to a polyimide-containing N,N-dimethylformamide solution, and stirring; and subjecting a resulting mixture to distillation and then to carbonization to obtain the silicon/carbon composite anode material; the modified silicon powder is a silicon powder modified by a silane coupling agent solution; and the silane coupling agent solution is obtained by hydrolyzing a silane coupling agent with an aqueous acetic acid solution; the silane coupling agent is one selected from the group consisting of γ-methacryloxypropyltrimethoxysilane and γ-glycidoxypropyltrimethoxysilane.
