US 12,206,061 B2
Electronic device having display with internal light reflection suppression
Dagny Fleischman, Campbell, CA (US); Chi-Jui Chung, Santa Clara, CA (US); Enkhamgalan Dorjgotov, Mountain View, CA (US); Giovanni Carbone, Palo Alto, CA (US); Graham B. Myhre, San Jose, CA (US); and Michael Slootsky, Santa Clara, CA (US)
Assigned to Apple Inc., Cupertino, CA (US)
Filed by Apple Inc., Cupertino, CA (US)
Filed on Jun. 29, 2020, as Appl. No. 16/915,629.
Claims priority of provisional application 62/880,220, filed on Jul. 30, 2019.
Prior Publication US 2021/0036265 A1, Feb. 4, 2021
Int. Cl. H01L 51/52 (2006.01); G02B 1/08 (2006.01); G02B 5/30 (2006.01); G02B 27/00 (2006.01); G02B 27/01 (2006.01); G02F 1/133 (2006.01); H01L 27/32 (2006.01); H10K 50/844 (2023.01); H10K 50/86 (2023.01); H10K 59/12 (2023.01); G02F 1/1333 (2006.01); G02F 1/1335 (2006.01); H10K 50/80 (2023.01); H10K 102/00 (2023.01)
CPC H10K 50/865 (2023.02) [H10K 50/844 (2023.02); H10K 59/12 (2023.02); G02F 1/133331 (2021.01); G02F 1/133528 (2013.01); H10K 50/868 (2023.02); H10K 2102/00 (2023.02)] 20 Claims

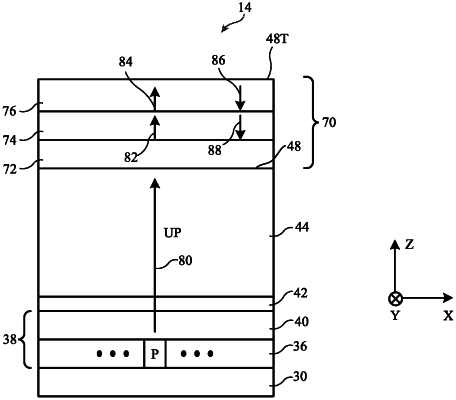

OG exemplary drawing

1. An electronic device, comprising:
pixels configured to form a display;
a support structure configured to support the display;
an encapsulation layer on the pixels;
a first quarter wave plate;
a first linear polarizer between the first quarter wave plate and the pixels;
a second quarter wave plate; and
a second linear polarizer between the first linear polarizer and the encapsulation layer.
