| CPC H01L 22/14 (2013.01) [H01L 21/48 (2013.01); H01L 22/32 (2013.01); H01L 24/19 (2013.01); H01L 24/82 (2013.01); H01L 2224/829 (2013.01)] | 6 Claims |
|
1. An electronic device, comprising:

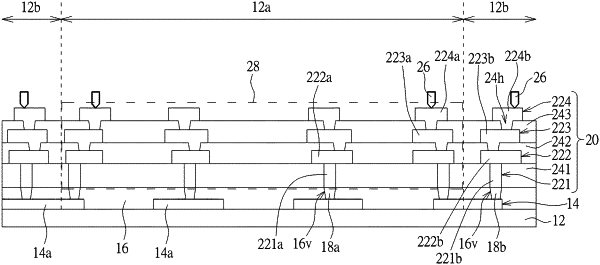

a redistribution layer, comprising:
a first insulating layer;
a second insulating layer; and
a plurality of traces electrically connected to each other through a first opening of the first insulating layer and a second opening of the second insulating layer, wherein the first insulating layer has a first side away from the second insulating layer, and the second insulating layer has a second side away from the first insulating layer;
a plurality of passive components, disposed on the first side; and
an electronic component, disposed on the second side,
wherein the plurality of passive components are electrically connected to the electronic component through the plurality of traces, one of the plurality of traces is a bonding pad, the electronic component is electrically connected to the redistribution layer through the bonding pad, a portion of the bonding pad contacts with the second side of the second insulating layer, another portion of the bonding pad is disposed in the second opening of the second insulating layer, and a width of the portion of the bonding pad is greater than a width of the another portion of the bonding pad.
|
