US 12,205,703 B2
Displaying visual elements on a medical device
Daniel Vik, Sunnyvale, CA (US); and Sreelal Chandrasenan, San Diego, CA (US)
Assigned to CareFusion 303, Inc., San Diego, CA (US)
Filed by CareFusion 303, Inc., San Diego, CA (US)
Filed on May 30, 2024, as Appl. No. 18/678,556.
Application 18/678,556 is a continuation of application No. 17/539,526, filed on Dec. 1, 2021.
Application 17/539,526 is a continuation of application No. 15/930,270, filed on May 12, 2020, granted, now 11,217,338, issued on Jan. 4, 2022.
Application 15/930,270 is a continuation of application No. 16/197,121, filed on Nov. 20, 2018, granted, now 10,664,147, issued on May 26, 2020.
Application 16/197,121 is a continuation of application No. 14/939,875, filed on Nov. 12, 2015, granted, now 10,140,004, issued on Nov. 27, 2018.
Application 14/939,875 is a continuation of application No. 12/987,472, filed on Jan. 10, 2011, granted, now 9,190,010, issued on Nov. 17, 2015.
Prior Publication US 2024/0312592 A1, Sep. 19, 2024
Int. Cl. G09G 5/00 (2006.01); A61M 5/142 (2006.01); G06F 3/04847 (2022.01); G16H 20/17 (2018.01); G16H 40/63 (2018.01)
CPC G16H 20/17 (2018.01) [A61M 5/142 (2013.01); G06F 3/04847 (2013.01); G09G 5/00 (2013.01); G16H 40/63 (2018.01); A61M 2205/505 (2013.01); G09G 2320/066 (2013.01); G09G 2320/0666 (2013.01); G09G 2340/14 (2013.01); G09G 2360/144 (2013.01); G09G 2380/08 (2013.01)] 22 Claims

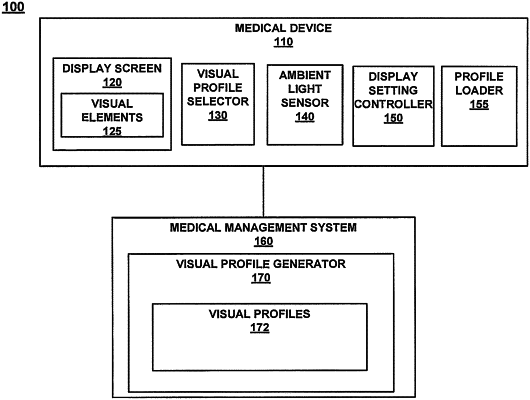

OG exemplary drawing

1. An infusion pump comprising:
a multi-color display configured to display a plurality of visual elements wherein at least two visual elements of the plurality of visual elements are associated with a function of the infusion pump;
an ambient light sensor;
a processor; and
a non-transitory memory storing executable instructions that, when executed by the processor, cause the infusion pump to:
determine a state of the infusion pump corresponding to an operating parameter associated with a treatment provided by the infusion pump;
determine, based on the state of the infusion pump, that a rule for a visual profile selection is satisfied;
activate, based on the rule for the visual profile selection, a visual profile of the infusion pump;
display, on the multi-color display of the infusion pump, a first visual element according to the visual profile;
receive a signal generated by the ambient light sensor; and
adjust a brightness of the infusion pump, based on the signal generated by the ambient light sensor.
