US 12,205,671 B2
Circuit structure and related method to compensate for sense amplifier leakage
Xiaoli Hu, Shanghai (CN); Xiaoxiao Li, Shanghai (CN); Wei Zhao, Shanghai (CN); Yuqing Sun, Shanghai (CN); Xueqiang Dai, Nanjing (CN); and Xiaohua Cheng, Shanghai (CN)
Assigned to GlobalFoundries U.S. Inc., Malta, NY (US)
Filed by GlobalFoundries U.S. Inc., Malta, NY (US)
Filed on Jul. 27, 2022, as Appl. No. 17/815,273.
Prior Publication US 2024/0038283 A1, Feb. 1, 2024
Int. Cl. G11C 7/14 (2006.01); G11C 7/06 (2006.01)
CPC G11C 7/14 (2013.01) [G11C 7/062 (2013.01)] 14 Claims

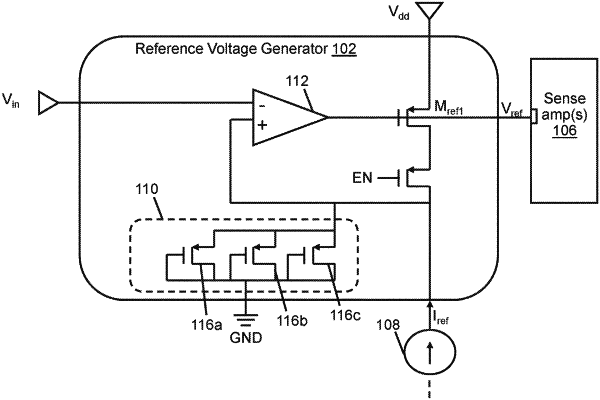

OG exemplary drawing

1. A circuit structure comprising:
a reference voltage generator coupling a supply voltage and a reference line to a sense amplifier having a plurality of phases; and
a multiplexer within the reference voltage generator and coupled to the reference line, the multiplexer including a plurality of transistors each configured to mirror a current leakage within a respective phase of the sense amplifier and having a gate terminal coupled to ground,
wherein each respective phase of the sense amplifier differs from at least one other phase of the sense amplifier.
