US 12,205,448 B2
Systems, methods and devices for the rapid assessment and deployment of appropriate modular aid solutions in response to disasters
Simon R. Daniel, Farnham (GB); Timothy W. Coleman, Palm Beach, FL (US); Yitzhack Schwartz, Haifa (IL); Zubin Rustom Wadia, White Plains, NY (US); and Justyna Zander, Berlin (DE)
Assigned to Simon R. Daniel, Farnham (GB); Timothy W. Coleman, , FL (US); Yitzhack Schwartz, Haifa (IL); Zubin Rustom Wadia, , NY (US); and Justyna Zander, Berlin (DE)
Filed by Simon R. Daniel, Farnham (GB); Timothy W. Coleman, Palm Beach, FL (US); Yitzhack Schwartz, Haifa (IL); Zubin Rustom Wadia, White Plains, NY (US); and Justyna Zander, Berlin (DE)
Filed on Nov. 16, 2022, as Appl. No. 17/988,619.
Application 17/988,619 is a continuation of application No. 17/060,619, filed on Oct. 1, 2020, granted, now 11,508,228.
Application 17/060,619 is a continuation of application No. 15/951,279, filed on Apr. 12, 2018, abandoned.
Application 15/951,279 is a continuation of application No. 14/633,530, filed on Feb. 27, 2015, abandoned.
Application 14/633,530 is a continuation of application No. 12/870,117, filed on Aug. 27, 2010, abandoned.
Claims priority of application No. 0914962 (GB), filed on Aug. 27, 2009.
Prior Publication US 2023/0081755 A1, Mar. 16, 2023
This patent is subject to a terminal disclaimer.
Int. Cl. G08B 21/02 (2006.01); G08B 25/01 (2006.01); H04L 12/18 (2006.01); H04L 51/58 (2022.01); H04Q 9/00 (2006.01); B64U 101/69 (2023.01)
CPC G08B 21/02 (2013.01) [G08B 25/016 (2013.01); H04L 12/1895 (2013.01); H04L 51/58 (2022.05); H04Q 9/00 (2013.01); B64U 2101/69 (2023.01); B64U 2201/20 (2023.01); H04L 12/189 (2013.01)] 18 Claims

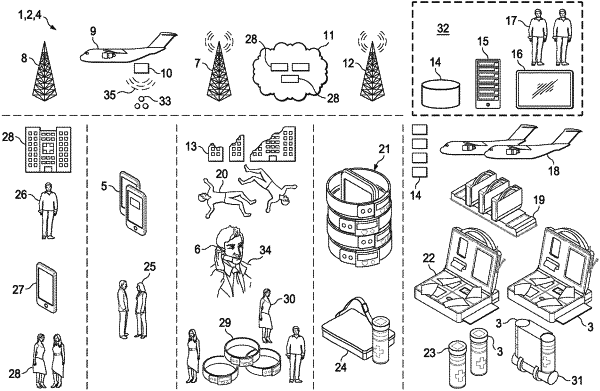

OG exemplary drawing

1. A disaster response system, comprising:
a communication infrastructure including a plurality of sensor assemblies configured to:
generate data indicative of at least one of environmental conditions, motion, position, chemical detection, and medical information; and
wirelessly provide the generated data to the communication infrastructure,
wherein at least one of the sensor assemblies generates data indicative of a position of the at least one sensor assembly;
an incident command infrastructure configured to:
exchange data with the communication infrastructure; and
detect an incident based on the data from the sensor assemblies;
an unmanned aerial vehicle (UAV) configured to deliver a payload in response to the detected incident and to a location indicated by the data from the at least one sensor assembly, wherein the at least one sensor assembly is separate from the UAV; and
a phone device configured to:
exchange data with the communication infrastructure;
periodically cache a local map into a memory of the phone device responsive to the phone device entering a new zone or geographic region; and
provide the cached local map to a user in response to the detected incident.
