US 12,205,445 B2
Device for monitoring a motor vehicle, in particular a motorcycle, kit and method based on said device
Thomas Chambon, Toulouse (FR)
Assigned to KIBLE, Toulouse (FR)
Appl. No. 17/907,621
Filed by KIBLE, Toulouse (FR)
PCT Filed Apr. 2, 2021, PCT No. PCT/EP2021/058819
§ 371(c)(1), (2) Date Sep. 28, 2022,
PCT Pub. No. WO2021/198522, PCT Pub. Date Oct. 7, 2021.
Claims priority of application No. 2003350 (FR), filed on Apr. 3, 2020.
Prior Publication US 2023/0196890 A1, Jun. 22, 2023
Int. Cl. G08B 13/14 (2006.01); H04M 1/72 (2021.01); H04W 4/02 (2018.01); B60R 25/10 (2013.01); B60R 25/33 (2013.01); G08B 21/02 (2006.01)
CPC G08B 13/1436 (2013.01) [H04M 1/72 (2013.01); H04W 4/02 (2013.01); B60R 2025/1013 (2013.01); B60R 25/33 (2013.01); B60R 2325/106 (2013.01); B60R 2325/205 (2013.01); B60R 2325/306 (2013.01); G08B 13/1427 (2013.01); G08B 21/0269 (2013.01)] 7 Claims

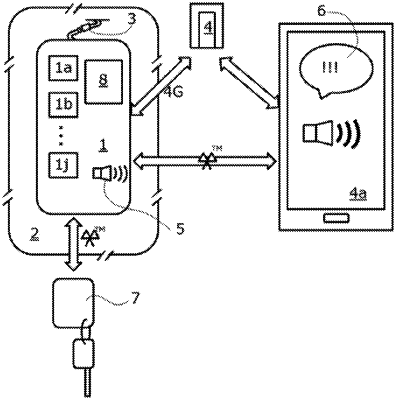

OG exemplary drawing

1. A monitoring device for a motor vehicle, said monitoring device comprising:
a processor combined with a memory and
geolocation means for locating a position of the monitoring device, wherein said monitoring device further comprises:
vibration detection means for sensing a vibration experienced by the motor vehicle,
fall detection means for detecting a fall of the motor vehicle,
mobile application means for exchanging information about the motor vehicle with a mobile application server,
silent alert means for transmitting a silent alert via the mobile application server based on data from the vibration detection means or from the fall detection means,
an audible alarm, and
mobile Internet connection means for performing a connection between the mobile application means and the monitoring device through the mobile application server,
wherein the mobile application means allows, via the connection performed by the mobile Internet connection means to the mobile application server, the audible alarm to be controlled remotely.
