US 12,205,046 B2
Device for ensembling data received from prediction devices and operating method thereof
Myung-eun Lim, Daejeon (KR); Do Hyeun Kim, Goyang (KR); and Jae Hun Choi, Daejeon (KR)
Assigned to ELECTRONICS AND TELECOMMUNICATIONS RESEARCH INSTITUTE, Daejeon (KR)
Filed by ELECTRONICS AND TELECOMMUNICATIONS RESEARCH INSTITUTE, Daejeon (KR)
Filed on Dec. 8, 2020, as Appl. No. 17/115,373.
Claims priority of application No. 10-2019-0164113 (KR), filed on Dec. 10, 2019.
Prior Publication US 2021/0174229 A1, Jun. 10, 2021
Int. Cl. G06N 5/04 (2023.01); G06F 18/2113 (2023.01); G06F 18/213 (2023.01); G06N 3/084 (2023.01); G06N 20/20 (2019.01)
CPC G06N 5/04 (2013.01) [G06F 18/2113 (2023.01); G06F 18/213 (2023.01); G06N 3/084 (2013.01); G06N 20/20 (2019.01)] 19 Claims

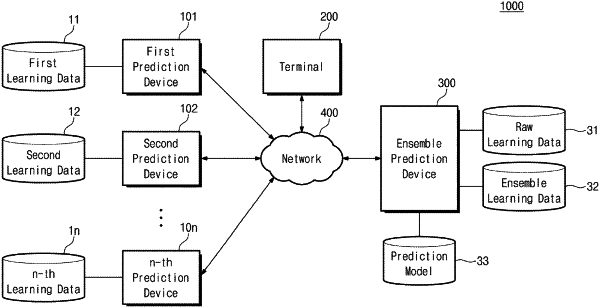

OG exemplary drawing

1. A device which ensembles data received from a plurality of prediction devices through a wireless or wired network, the device comprising:
a data manager configured to generate output data based on time-series data, to provide the output data to a first prediction device and a second prediction device through the network, to receive a first device prediction result corresponding to the output data from the first prediction device through the network, to receive a second device prediction result corresponding to the output data from the second prediction device through the network, to calculate a first device error based on a difference between the first device prediction result and the time-series data, and to calculate a second device error based on a difference between the second device prediction result and the time-series data;
a learner configured to adjust a parameter group of a prediction model for generating a first device weight corresponding to the first prediction device and a second device weight corresponding to the second prediction device, based on the first device prediction result, the second device prediction result, the first device error, and the second device error; and
a predictor configured to apply the first device weight to the first device prediction result to generate a first result, apply the second device weight to the second device prediction result to generate a second result, and to generate an ensemble result based on the first result and the second result,
wherein the ensemble result is provided to a terminal,
wherein the time-series data includes a plurality of features of an item at a plurality of times, respectively, the plurality of times being from a first time to a N-th time,
wherein the data manger generates the output data by sequentially generating (N−1) cumulative data, each subsequent pair of the (N−1) cumulative data including first cumulative data and second cumulative data, the first cumulative data including a first plurality of features of the item in the time-series data at a first plurality of times from the first time to an i-th time to generate prediction features of the first and second device prediction results corresponding to an (i+1)-th time, the second cumulative data including a second plurality of features of the item in the time-series data at a second plurality of times from the first time to a (i+1)-th time to generate prediction features of the first and second device prediction results corresponding to an (i+2)-th time.
