US 12,204,748 B2
Virtual keyboard setting method and apparatus, and storage medium
Lei Feng, Beijing (CN); Jian Lu, Beijing (CN); Jin Cao, Beijing (CN); Miaoli Hu, Beijing (CN); Wei Hu, Beijing (CN); Yihang Yang, Beijing (CN); Xiaoxue Song, Beijing (CN); and Haixin Li, Beijing (CN)
Assigned to BEIJING SOGOU TECHNOLOGY DEVELOPMENT CO., LTD., Beijing (CN)
Filed by BEIJING SOGOU TECHNOLOGY DEVELOPMENT CO., LTD., Beijing (CN)
Filed on Aug. 16, 2023, as Appl. No. 18/450,479.
Application 18/450,479 is a continuation of application No. PCT/CN2022/114862, filed on Aug. 25, 2022.
Claims priority of application No. 202111166897.1 (CN), filed on Sep. 30, 2021.
Prior Publication US 2023/0393732 A1, Dec. 7, 2023
Int. Cl. G06F 3/048 (2013.01); G06F 3/04886 (2022.01)
CPC G06F 3/04886 (2013.01) 14 Claims

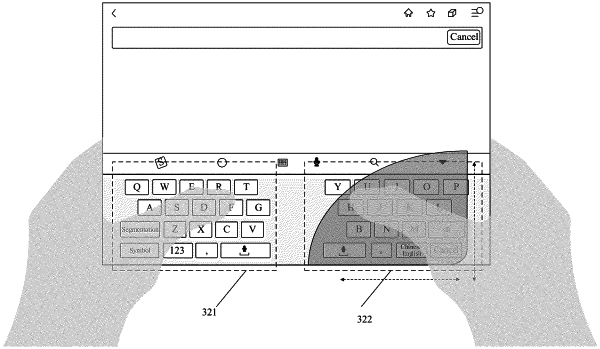

OG exemplary drawing

1. A virtual keyboard setting method applied to an electronic device, the method comprising:
acquiring farthest end coordinates, a set of the farthest end coordinates indicating a farthest position in a screen touched by a single finger of one hand when using the electronic device with the one hand;
determining a first arc according to at least three sets of the farthest end coordinates, the first arc characterizing farthest positions where the single finger can touch;
determining a first sector region according to the first arc and target screen frames, the target screen frames being side-frames of the screen located closest to a center of the first arc;
determining an operation region based on the first sector region, the operation region being a region operated in the screen for using an input method;
determining a trigger region, the trigger region being a region covered by the single finger when a belly of the single finger contacts the screen in a single touch;
determining a display region of a virtual keyboard according to the operation region;
determining an area of individual virtual keys in the virtual keyboard according to the trigger region, a size of the area of each individual virtual key being no less than a size of the trigger region; and
setting the virtual keyboard according to the display region of the virtual keyboard and the area of the virtual key,
wherein the display region of the virtual keyboard includes a first set of virtual keys located in the first sector region and a second set of virtual keys located outside of the first sector region, a usage frequency of the first set of virtual keys being higher than a usage frequency of the second set of virtual keys.
