US 12,204,723 B2
Mitigating display diffraction flares for under-display sensing
Xi Chen, Mountain View, CA (US); Changgeng Liu, San Jose, CA (US); Ion Bita, Los Altos, CA (US); and Marek Mienko, San Jose, CA (US)
Assigned to Google LLC, Mountain View, CA (US)
Filed by Google LLC, Mountain View, CA (US)
Filed on Dec. 11, 2023, as Appl. No. 18/535,693.
Claims priority of provisional application 63/604,707, filed on Nov. 30, 2023.
Prior Publication US 2024/0118772 A1, Apr. 11, 2024
Int. Cl. H04N 25/61 (2023.01); G06F 3/042 (2006.01)
CPC G06F 3/0421 (2013.01) 8 Claims

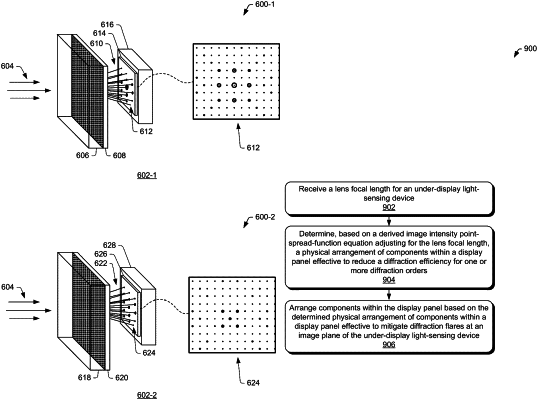

OG exemplary drawing

1. A method comprising:
receiving a lens focal length for an under-display light-sensing device;
determining, based on a derived image intensity point-spread-function equation adjusted for the lens focal length, a physical arrangement of components within a display panel effective to reduce a diffraction efficiency for one or more diffraction orders; and
arranging the components within the display panel based on the determined physical arrangement of components within the display panel effective to mitigate diffraction flares at an image plane of the under-display light-sensing device.
