US 12,204,717 B2
Systems and methods for flex circuit connections in touch screens
Meng-Tse Chen, Hsinchu (TW); Arnoldus Alvin Barlian, San Francisco, CA (US); Bayu Atmaja Thedjoisworo, Palo Alto, CA (US); Boris Russ, San Jose, CA (US); Ziyang Zhang, Foster City, CA (US); and Nathan Krishan Gupta, Hillsborough, CA (US)
Assigned to Apple Inc., Cupertino, CA (US)
Appl. No. 18/266,254
Filed by Apple Inc., Cupertino, CA (US)
PCT Filed Dec. 9, 2020, PCT No. PCT/CN2020/134899
§ 371(c)(1), (2) Date Jun. 8, 2023,
PCT Pub. No. WO2022/120636, PCT Pub. Date Jun. 16, 2022.
Prior Publication US 2024/0045539 A1, Feb. 8, 2024
Int. Cl. G06F 3/041 (2006.01); G06F 3/044 (2006.01); H05K 1/02 (2006.01); H05K 1/11 (2006.01)
CPC G06F 3/04164 (2019.05) [G06F 3/0445 (2019.05); G06F 3/0446 (2019.05); H05K 1/028 (2013.01); H05K 1/115 (2013.01); H05K 2201/10128 (2013.01)] 18 Claims

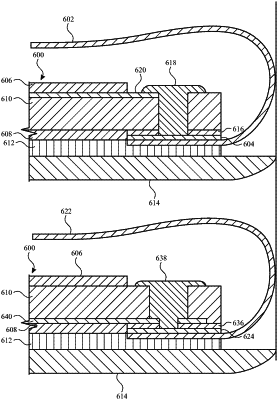

OG exemplary drawing

1. A touch screen, comprising:
a substrate;
a first touch electrode on a first side of the substrate;
a second touch electrode on a second side of the substrate different from the first side of the substrate;
a first flex circuit coupled to first touch circuitry, the first flex circuit including a conductive connection, wherein the first touch electrode and the conductive connection of the first flex circuit are disposed on a same side of the substrate in the touch screen; and
a first via including a conductive material, the first via configured to electrically couple the first touch electrode to the conductive connection of the first flex circuit, the first via disposed through at least a first portion of the touch screen, the conductive material of the first via being in direct contact with the conductive connection of the first flex circuit.
