US 12,204,715 B2
Inductance coil of a capacitance module
Paul Glad, Sandy, UT (US); and Douglas Steck, Riverton, UT (US)
Assigned to Cirque Corporation, Sandy, UT (US)
Filed by Cirque Corporation, Sandy, UT (US)
Filed on Feb. 13, 2024, as Appl. No. 18/439,932.
Application 18/439,932 is a continuation of application No. 18/203,118, filed on May 30, 2023, granted, now 11,989,362.
Prior Publication US 2024/0419277 A1, Dec. 19, 2024
This patent is subject to a terminal disclaimer.
Int. Cl. G06F 3/041 (2006.01); H01F 17/04 (2006.01); H01F 27/28 (2006.01)
CPC G06F 3/0414 (2013.01) [H01F 17/04 (2013.01); H01F 27/2885 (2013.01)] 17 Claims

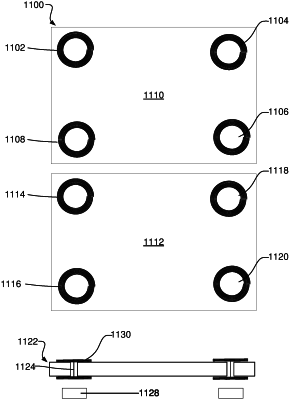

OG exemplary drawing

1. A capacitance module, comprising:
at least one touch electrode on a first surface of the capacitance module;
a first portion of an inductance coil deposited on a second surface of the capacitance module; and
the first portion of the inductance coil has a plurality of loops;
a second portion of the inductance coil deposited on a third surface of the capacitance module;
the second portion of the inductance coil has a plurality of loops; and
each of the plurality of loops of the first portion of the inductance coil is electrically connected to at least one of the plurality of loops of the second portion of the inductance coil;
wherein the inductance coil is positioned to interact with a magnet adjacent to the inductance coil.
