| CPC G06F 3/016 (2013.01) [G06F 3/03547 (2013.01); H01F 7/081 (2013.01)] | 8 Claims |
|

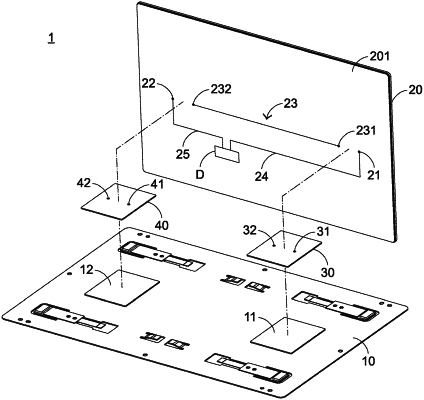

1. A touch module, comprising:
a base plate;
a first magnet installed on the base plate;
a second magnet installed on the base plate and separated from the first magnet;
a touch pad located over the base plate to cover the first magnet and the second magnet, wherein the touch pad comprises an output point, an input point and a communication part;
a first magnetic board located under the touch pad, coupled with the touch pad, and aligned with the first magnet; and
a second magnetic board located under the touch pad, coupled with the touch pad, and aligned with the second magnet, wherein the second magnetic board is separated from the first magnetic board,
wherein the output point of the touch pad is electrically coupled with the first magnetic board, the input point of the touch pad is electrically coupled with the second magnetic board, and the first magnetic board and the second magnetic board are electrically connected with each other through the communication part of the touch pad, wherein the first magnetic board induces a magnetic field of the first magnet and generates vibration, and the second magnetic board induces a magnetic field of the second magnet and generates vibration,
wherein the touch pad has a bottom surface, wherein the bottom surface of the touch pad faces the first magnet and the second magnet, and the output point and the input point of the touch pad are installed on the bottom surface of the touch pad and exposed outside,
wherein the touch pad comprises a driving circuit, an output circuit and an input circuit, wherein the driving circuit is connected with the output circuit and the input circuit, the output circuit is electrically coupled with the first magnetic board through the output point, and the input circuit is electrically coupled with the second magnetic board through the input point.
|
