US 12,204,689 B2
Method, system, and computer program product for drawing and fine-tuned motor controls
Björn Tibbling, Järfälla (SE); Simon Cicek, Örebro (SE); Volodymyr Iakovenko, Stockholm (SE); Emil Lennart Johannes Eriksson Wallin, Farsta (SE); Gordan Gubic, Stockholm (SE); and Erik Joel Ahlgren, Visby (SE)
Assigned to Tobii Dynavox AB, Stockholm (SE)
Filed by Tobii Dynavox AB, Stockholm (SE)
Filed on Sep. 26, 2023, as Appl. No. 18/372,789.
Claims priority of provisional application 63/410,382, filed on Sep. 27, 2022.
Prior Publication US 2024/0111361 A1, Apr. 4, 2024
Int. Cl. G06F 3/04812 (2022.01); G06F 3/01 (2006.01)
CPC G06F 3/013 (2013.01) [G06F 3/04812 (2013.01)] 18 Claims

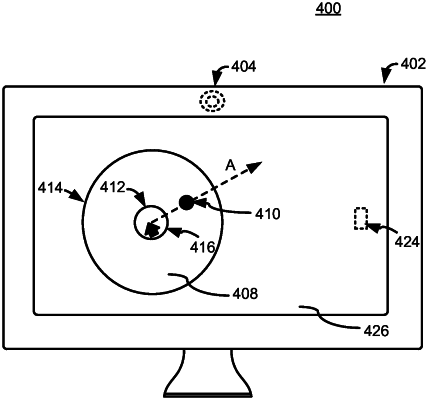

OG exemplary drawing

1. A method for drawing and fine tuned motor controls comprising:
displaying, with at least one processor, data comprising an activation zone via a display of a user device, wherein the activation zone comprises an annulus between two concentric circles, wherein a first circle of the two concentric circles is an inner circle with a first perimeter, wherein a second circle of the two concentric circles is an outer circle with a second perimeter;
receiving, with at least one processor, gaze data from a user comprising a gaze point;
determining, with at least one processor, a location of the gaze point is within the activation zone, wherein any part of the display of the user device inside of the perimeter of the first circle is outside of the activation zone, and wherein any part of the display of the user device outside of the perimeter of the second circle is outside of the activation zone;
moving, with at least one processor, a cursor in a direction of the gaze point based on determining the location of the gaze point is within the activation zone;
in response to moving the cursor in a direction of the gaze point, causing, with at least one processor, an action to be performed; and
displaying, with at least one processor, data associated with the action via the display of the user device.
