US 12,204,371 B2
Jig for installing screen protector to portable electronic device
In Sung Yoon, Seoul (KR); Ji Hye Kang, Seoul (KR); and Dong Kyung Choi, Seoul (KR)
Assigned to SPIGEN KOREA CO., LTD., Seoul (KR)
Filed by SPIGEN KOREA CO., LTD., Seoul (KR)
Filed on Nov. 18, 2022, as Appl. No. 17/990,066.
Application 17/990,066 is a continuation in part of application No. 29/792,306, filed on Mar. 20, 2022, granted, now D1007983.
Claims priority of application No. 10-2022-0074263 (KR), filed on Jun. 17, 2022.
Prior Publication US 2023/0412206 A1, Dec. 21, 2023
Int. Cl. G06F 1/16 (2006.01); H04B 1/3888 (2015.01)
CPC G06F 1/1628 (2013.01) [H04B 1/3888 (2013.01)] 11 Claims

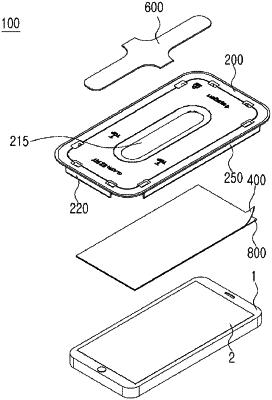

OG exemplary drawing

1. A jig for installing a protection member on a portable electronic device, the jig comprising:
a main body; and
a plurality of retaining members configured to be elastically deformable,
wherein the plurality of retaining members are coupled or connected to the main body,
wherein the plurality of retaining members surround a mounting space formed on the main body, and the portable electronic device is inserted into the mounting space, and
wherein a part of a removable member is removably attached to the protection member through a through hole of the main body.
