US 12,203,994 B2
Systems and methods for monitoring characteristics of energy units
Farshid Roumi, Pasadena, CA (US); and Mahshid Roumi, Pasadena, CA (US)
Assigned to California Institute of Technology, Pasadena, CA (US)
Filed by California Institute of Technology, Pasadena, CA (US)
Filed on Dec. 13, 2022, as Appl. No. 18/080,189.
Application 18/080,189 is a continuation of application No. 17/343,068, filed on Jun. 9, 2021, granted, now 11,567,134.
Application 17/343,068 is a continuation of application No. 16/379,026, filed on Apr. 9, 2019, granted, now 11,073,564, issued on Jul. 27, 2021.
Application 16/379,026 is a continuation of application No. 15/282,982, filed on Sep. 30, 2016, granted, now 10,330,732, issued on Jun. 25, 2019.
Claims priority of provisional application 62/242,416, filed on Oct. 16, 2015.
Claims priority of provisional application 62/235,681, filed on Oct. 1, 2015.
Prior Publication US 2023/0324461 A1, Oct. 12, 2023
This patent is subject to a terminal disclaimer.
Int. Cl. G01R 31/389 (2019.01); G01R 31/367 (2019.01); G01R 31/385 (2019.01); G01R 31/392 (2019.01); G01R 31/396 (2019.01); G01R 31/52 (2020.01)
CPC G01R 31/367 (2019.01) [G01R 31/386 (2019.01); G01R 31/389 (2019.01); G01R 31/392 (2019.01); G01R 31/396 (2019.01); G01R 31/52 (2020.01)] 22 Claims

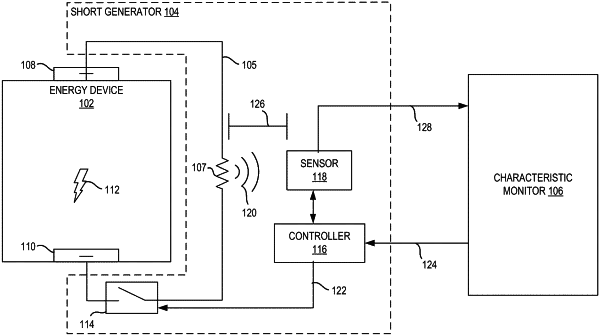

OG exemplary drawing

1. A method for monitoring characteristics of an electric energy device, comprising:
generating at least two external shorts with known current or voltage profiles at the electric energy device;
sensing at least one change in an electromagnetic field emitted by the electric energy device due to the generated at least two external shorts by at least one sensor at a predetermined distance from the device;
determining at least one signal parameter based on the sensed at least one change in electromagnetic field in the vicinity of the electric energy device; and
determining at least one characteristic of the electric energy device based on the at least one signal parameter.
