US 12,203,960 B2
Manufacturing fixture and process for electrode of neuromodulation probe
Jo-Ping Lee, Hsinchu (TW); Kun-Ta Wu, Nantou County (TW); Wei-Chin Huang, Tainan (TW); and An-Li Chen, Tainan (TW)
Assigned to INDUSTRIAL TECHNOLOGY RESEARCH INSTITUTE, Hsinchu (TW)
Filed by Industrial Technology Research Institute, Hsinchu (TW)
Filed on Dec. 27, 2022, as Appl. No. 18/089,158.
Claims priority of provisional application 63/294,173, filed on Dec. 28, 2021.
Claims priority of application No. 111134313 (TW), filed on Sep. 12, 2022.
Prior Publication US 2023/0204627 A1, Jun. 29, 2023
Int. Cl. G01R 31/20 (2006.01); G01R 1/067 (2006.01); G01R 1/073 (2006.01)
CPC G01R 1/07307 (2013.01) [G01R 1/06705 (2013.01)] 23 Claims

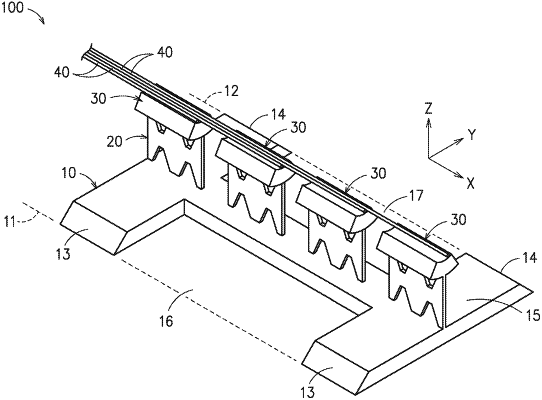

OG exemplary drawing

1. A manufacturing fixture for an electrode of a neuromodulation probe, comprising:
a first-layer frame having oppositely two lateral sides on an XY plane, the two lateral sides being parallel to each other and extending in an X direction, and each of the two lateral sides having a bevel;
a plurality of electrodes arranged in parallel to the XY plane and distributed along the X direction;
a second-layer frame disposed between the first-layer frame and the plurality of electrodes, the second-layer frame having two opposite sides to connect the first-layer frame and the plurality of electrodes, respectively; and
a plurality of wires, each of the plurality of wires being connected with a surface of one of the plurality of electrodes opposite to the second-layer frame.
