US 12,203,862 B1
Raman spectroscopy system
Joseph G. LaChapelle, Philomath, OR (US); and Roger S. Cannon, Oviedo, FL (US)
Assigned to Haemanthus, Inc., Austin, TX (US)
Filed by Haemanthus, Inc., Austin, TX (US)
Filed on Jul. 2, 2024, as Appl. No. 18/762,412.
Claims priority of provisional application 63/560,521, filed on Mar. 1, 2024.
Int. Cl. G01J 3/44 (2006.01); G01N 21/65 (2006.01)
CPC G01N 21/65 (2013.01) [G01N 2201/0612 (2013.01)] 30 Claims

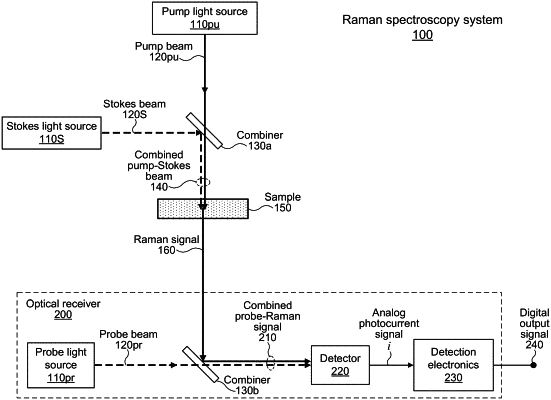

OG exemplary drawing

1. A system comprising:
a first light source configured to produce a first beam of light at a first frequency;
a second light source configured to produce a second beam of light at a second frequency, wherein the first and second frequencies are offset by a frequency offset Ω;
one or more optical elements configured to:
direct the first and second beams of light to a sample; and
collect a Raman signal produced by the sample in response to the first and second beams of light;
an optical receiver configured to detect the Raman signal, the optical receiver comprising:
a third light source configured to produce a third beam of light at a third frequency, wherein the third light source comprises a wavelength-tunable laser, wherein the third frequency is adjustable by changing a wavelength of light produced by the wavelength-tunable laser; and
an optical detector configured to coherently mix a portion of the Raman signal with at least a portion of the third beam of light to produce an electronic signal; and
a processor configured to determine a characteristic of the electronic signal.
