US 12,203,728 B2
Weapon accessory mount
Michael Lindsay, Columbia, MO (US); James Tayon, Moberly, MO (US); Michael Cottrell, Ashland, MO (US); Justin Burke, Columbia, MO (US); Paul Coryell, Columbia, MO (US); Jarrod Grove, Columbia, MO (US); and Curtis Smith, Columbia, MO (US)
Assigned to AOB Products Company, Columbia, MO (US)
Filed by AOB Products Company, Columbia, MO (US)
Filed on Apr. 22, 2021, as Appl. No. 17/237,871.
Claims priority of provisional application 63/014,027, filed on Apr. 22, 2020.
Prior Publication US 2021/0333068 A1, Oct. 28, 2021
Int. Cl. F41G 11/00 (2006.01)
CPC F41G 11/003 (2013.01) 36 Claims

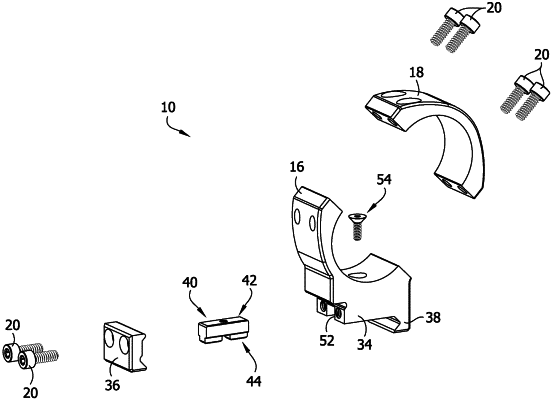

OG exemplary drawing

1. A weapon accessory mount assembly mountable on a first weapon rail and a second weapon rail, the first weapon rail having a first slot and the second weapon rail having a second slot, the first and second slots having at least one different dimension, the weapon accessory mount assembly comprising:
a rail mount defining a rail channel sized and shaped to receive the first and second weapon rails to mount the rail mount to one of the first or second weapon rails;
a rail slot key configured to be inserted into the first slot of the first weapon rail and the second slot of the second weapon rail to inhibit longitudinal movement of the weapon accessory mount assembly along the first or second weapon rail when the weapon accessory mount assembly is mounted on the respective first or second weapon rail, the rail slot key including a first key portion and a second key portion coupled to the first key portion, the first key portion sized and shaped to be inserted into the first slot and the second key portion sized and shaped to be inserted into the second slot; and
a fastener being selectively moveable with respect to the rail channel and configured to directly engage and releasably secure the rail slot key to the rail mount in a first configuration and a second configuration, wherein in the first configuration the first key portion is coupled to the second key portion and is arranged to be inserted into the first slot of the first weapon rail and wherein in the second configuration the second key portion is coupled to the first key portion and is arranged to be inserted into the second slot of the second weapon rail.
