US 12,203,703 B2
Liquid removal device with absorber drum and related methods
Justin Stewart, Ponte Vedra, FL (US)
Assigned to Clevertivity LLC, Ponte Vedra Beach, FL (US)
Filed by Clevertivity LLC, Ponte Vedra Beach, FL (US)
Filed on Feb. 20, 2024, as Appl. No. 18/581,905.
Application 18/581,905 is a continuation of application No. 18/226,620, filed on Jul. 26, 2023.
Application 18/226,620 is a continuation of application No. 18/109,072, filed on Feb. 13, 2023, granted, now 11,747,083, issued on Sep. 5, 2023.
Application 18/109,072 is a continuation of application No. 17/375,673, filed on Jul. 14, 2021, granted, now 11,609,044, issued on Mar. 21, 2023.
Claims priority of provisional application 63/214,402, filed on Jun. 24, 2021.
Claims priority of provisional application 63/164,062, filed on Mar. 22, 2021.
Claims priority of provisional application 63/051,439, filed on Jul. 14, 2020.
Prior Publication US 2024/0191946 A1, Jun. 13, 2024
Int. Cl. F26B 5/16 (2006.01); F26B 9/00 (2006.01); F26B 25/16 (2006.01)
CPC F26B 5/16 (2013.01) [F26B 9/003 (2013.01); F26B 25/16 (2013.01)] 20 Claims

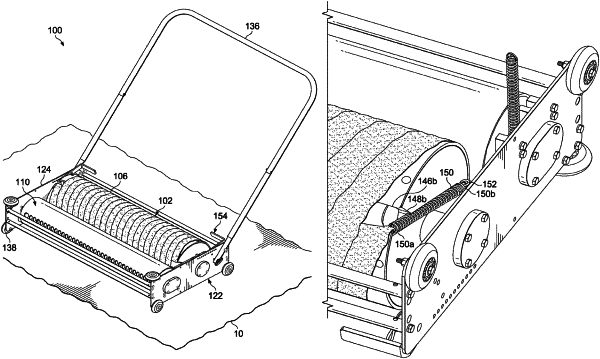

OG exemplary drawing

1. A liquid removal device, the liquid removal device comprising:
a housing;
an absorber drum, the absorber drum coupled with the housing at a first end and second end such that the absorber drum is rotatable relative to the housing, wherein the absorber drum is configured to absorb a liquid from a surface;
an extractor, the extractor coupled with the housing, wherein the extractor is configured to extract the liquid absorbed by the absorber drum from the absorber drum; and
a reservoir, the reservoir being associated with the housing, wherein the reservoir is configured to receive and retain the liquid extracted from the absorber drum by the extractor.
