US 12,203,665 B2
Hybrid window air conditioning unit
David Leezer, LaGrange, KY (US); Zachary Chapin, Louisville, KY (US); and Adam Schultz, Prospect, KY (US)
Assigned to MIDEA GROUP CO., LTD., Guangdong (CN)
Filed by Midea Group Co., Ltd., Foshan (CN)
Filed on Dec. 30, 2021, as Appl. No. 17/566,416.
Prior Publication US 2023/0213214 A1, Jul. 6, 2023
Int. Cl. F24F 1/031 (2019.01); F24F 13/20 (2006.01); F24F 13/32 (2006.01); F24F 1/0057 (2019.01); F24F 1/027 (2019.01)
CPC F24F 1/031 (2019.02) [F24F 13/20 (2013.01); F24F 13/32 (2013.01); F24F 1/0057 (2019.02); F24F 1/027 (2013.01); F24F 2221/20 (2013.01)] 22 Claims

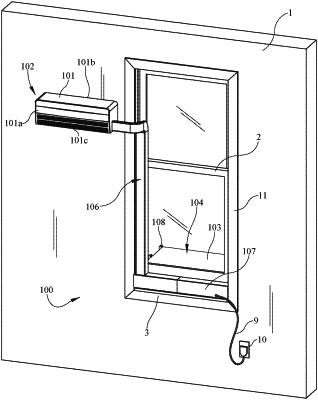

OG exemplary drawing

1. A hybrid window air conditioning unit, comprising:
an indoor unit configured for installation on an interior wall of an air-conditioned space, having an indoor housing with a front panel and a back panel, and an indoor heat exchanger and an indoor fan housed within said indoor housing;
an outdoor unit configured for installation exteriorly of the air-conditioned space, having an outdoor housing, and an outdoor heat exchanger, a compressor, and an outdoor fan housed within said outdoor housing;
a connection unit coupled between said indoor unit and said outdoor unit, wherein said connection unit has an interior channel containing refrigerant piping and electrical wiring connecting between said indoor unit and said outdoor unit, such that said indoor heat exchanger of said indoor unit is operatively connected with said compressor and said outdoor heat exchanger of said outdoor unit through said connection unit; and
an outdoor unit cover, wherein said outdoor unit cover is made of metal and painted with a water proof UV-resistant material.
