US 12,203,632 B2
Explosion protected luminaire
Ivon Dachlan, Glasgow (GB); and Paolo Camillo, Glasgow (GB)
Assigned to Hubbell Incorporated, Shelton, CT (US)
Filed by Hubbell Incorporated, Shelton, CT (US)
Filed on Jun. 9, 2023, as Appl. No. 18/332,259.
Application 18/332,259 is a continuation of application No. 17/574,222, filed on Jan. 12, 2022, granted, now 11,788,710.
Claims priority of provisional application 63/136,362, filed on Jan. 12, 2021.
Prior Publication US 2023/0383927 A1, Nov. 30, 2023
This patent is subject to a terminal disclaimer.
Int. Cl. F21V 15/01 (2006.01); F21V 17/10 (2006.01); F21V 19/00 (2006.01); F21V 29/70 (2015.01)
CPC F21V 15/01 (2013.01) [F21V 17/10 (2013.01); F21V 19/003 (2013.01); F21V 29/70 (2015.01)] 20 Claims

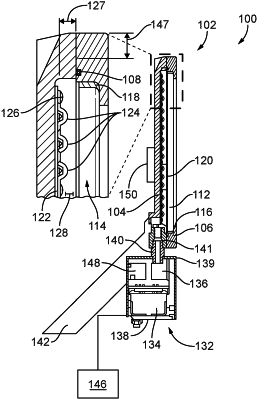

OG exemplary drawing

1. A luminaire system comprising:
a luminaire enclosure comprising a luminaire enclosure cover having a first surface;
an explosion encapsulating luminaire enclosure lens disposed in the luminaire enclosure cover, the explosion encapsulating luminaire enclosure lens including a first lens surface and a second lens surface opposite to the first lens surface; and
a luminaire enclosure backing having a second surface and configured to be fastened to the enclosure cover and thereby form an explosion encapsulating seal in a seam formed between the luminaire enclosure backing and the luminaire enclosure cover, the luminaire enclosure backing includes a recessed portion that has a mounting surface for the pcb board;
wherein an explosion encapsulating flame path is defined in the seam;
wherein the first lens surface is sealing connected to the enclosure cover and the second surface faces the mounting surface and the pcb board;
wherein a luminaire cavity is formed between the luminaire enclosure backing and the second lens surface; and
wherein the second lens surface is flush with the second surface such that the depth of the recessed portion is substantially equal to the height of the luminaire cavity.
