US 12,203,579 B2
Fluid handling couplings
Elizabeth J. Langer, Minneapolis, MN (US)
Assigned to Colder Products Company, Roseville, MN (US)
Filed by Colder Products Company, Roseville, MN (US)
Filed on Oct. 19, 2022, as Appl. No. 17/969,184.
Application 17/969,184 is a continuation of application No. 17/509,412, filed on Oct. 25, 2021, granted, now 11,480,280, issued on Oct. 25, 2022.
Claims priority of provisional application 63/114,053, filed on Nov. 16, 2020.
Prior Publication US 2024/0133500 A1, Apr. 25, 2024
Prior Publication US 2024/0230001 A9, Jul. 11, 2024
Int. Cl. F16L 37/34 (2006.01); F16L 37/084 (2006.01); F16L 37/12 (2006.01)
CPC F16L 37/34 (2013.01) [F16L 37/0841 (2013.01); F16L 37/12 (2013.01)] 17 Claims

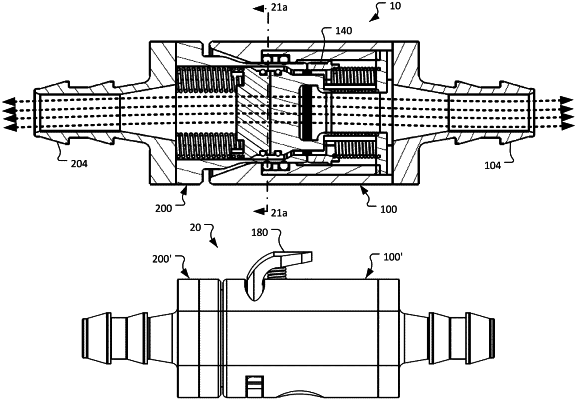

OG exemplary drawing

1. A fluid handling cartridge, comprising:
a cartridge housing defining a central longitudinal axis and a housing internal space; and
a valve assembly disposed within the housing internal space, the valve assembly comprising: (i) a valve stem comprising a valve stem head and a valve stem head support structure attached to the valve stem head and extending longitudinally to the cartridge housing and (ii) a valve sleeve,
wherein the valve sleeve is movable, along the central longitudinal axis, relative to the valve stem head and the valve stem head support structure between: (a) an open position in which a flow path is defined through the fluid handling cartridge and (b) a closed position in which the flow path is blocked,
wherein the valve sleeve has an oblong outer profile shape that extends around the valve stem head when the valve sleeve is in the closed position and that extends around the valve stem head support structure when the valve sleeve is in the open position, and
wherein the central longitudinal axis intersects the valve stem head and does not intersect the valve stem head support structure.
