CPC F01D 5/005 (2013.01) [B23P 6/045 (2013.01); F01D 5/186 (2013.01); F01D 5/288 (2013.01); F01D 9/065 (2013.01); B23P 2700/06 (2013.01); F05D 2230/10 (2013.01); F05D 2230/90 (2013.01); F05D 2260/202 (2013.01)] | 17 Claims |
1. A method of reducing depletion of elements from an airfoil comprising:
disposing a bond coating on the airfoil, where the airfoil comprises a concave pressure wall, a convex suction wall and cooling channels; where the concave pressure wall extends radially from a base to a tip of the airfoil and where the convex suction wall contacts the concave pressure wall at a leading edge and at a trailing edge spaced axially from leading edge; where the airfoil comprises a material that has an initial composition;

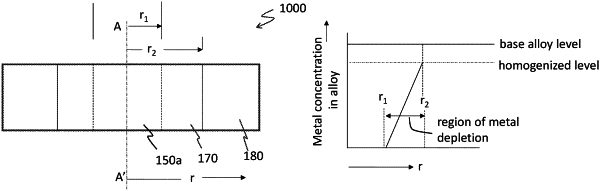

machining a cooling hole in the airfoil to contact the cooling channels such that a fluid travelling in the cooling channel may be discharged via the cooling hole; where the machining of the cooling hole results in a formation of a depleted region around the cooling hole; where the depleted region is depleted of a portion of the initial composition of the airfoil;
disposing a top coat on the bond coat; and
subjecting the airfoil to a heat treatment at a temperature effective to promote diffusion of elements from a non-depleted region to the depleted region around the cooling hole; where the non-depleted region is located further away from the cooling hole than the depleted region.
|
