| CPC E21B 43/2607 (2020.05) [E21B 34/16 (2013.01); E21B 43/26 (2013.01); F16N 13/22 (2013.01); F16N 29/02 (2013.01)] | 12 Claims |
|

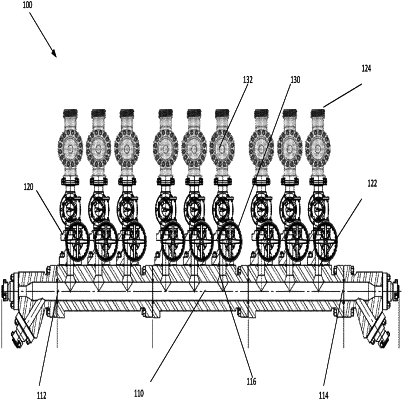

1. An automated zipper manifold comprising:
a mixing chamber;
a line extending from a block to a wellbore with hydrocarbons, the line having an inlet directly coupled to the mixing chamber;
a first valve positioned on the line,
a second valve positioned on the line, the first valve and the second valve being positioned in series;
a first pressure transducer positioned between the first valve and the second valve on the line, the first pressure transducer being configured to measure a first pressure between the first valve on the line and the second valve on the line based on fluid flowing to the wellbore;
a second pressure transducer positioned between the second valve on the line and the wellbore, the second pressure transducer being configured to measure a second pressure between the second valve and the wellbore based on the fluid flowing to the wellbore, wherein during a fracturing operation fluid passes from the mixing chamber, along the first line, to the wellbore with the hydrocarbons, the first pressure transducer and the second pressure transducer being positioned between the mixing chamber and the wellbore with hydrocarbons.
|
