US 12,203,296 B2
Hidden vehicle door handle mounting mechanism and vehicle
Xinfei Guo, Baoding (CN); He Song, Baoding (CN); Xiuquan Xue, Baoding (CN); Zhijie He, Baoding (CN); Xi Chen, Baoding (CN); Fanxiang Meng, Baoding (CN); and Jinzhong Kang, Baoding (CN)
Assigned to GREAT WALL MOTOR COMPANY LIMITED, Baoding (CN)
Appl. No. 17/765,088
Filed by GREAT WALL MOTOR COMPANY LIMITED, Baoding (CN)
PCT Filed Oct. 29, 2020, PCT No. PCT/CN2020/124794
§ 371(c)(1), (2) Date Mar. 30, 2022,
PCT Pub. No. WO2021/098470, PCT Pub. Date May 27, 2021.
Claims priority of application No. 201911156862.2 (CN), filed on Nov. 22, 2019.
Prior Publication US 2022/0396978 A1, Dec. 15, 2022
Int. Cl. E05B 79/06 (2014.01); E05B 85/10 (2014.01)
CPC E05B 79/06 (2013.01) [E05B 85/107 (2013.01)] 14 Claims

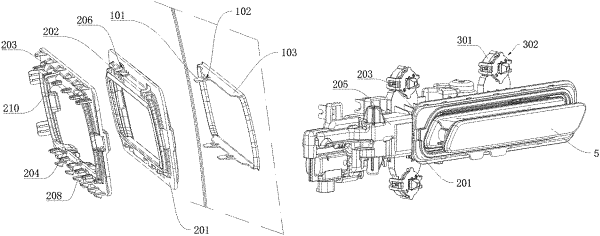

OG exemplary drawing

1. A mounting mechanism for a hidden vehicle door handle, wherein, the mounting mechanism for a hidden vehicle door handle comprises:
an outer plate mounting element, configured to be disposed on an inner side of a vehicle door outer plate, the outer plate mounting element and the vehicle door are disposed as an entirety;
a base element, configured to be connected with a handle, the base element is clamped and fixed to a designated mounting position by the outer plate mounting element; and
a tolerance absorption element, fixedly connected with the base element and configured to be disposed between mounting holes and bolts on a vehicle door outer plate reinforcing plate, the tolerance absorption element is configured to absorb tolerances between the bolts and the mounting holes, and the vehicle door outer plate reinforcing plate is fixedly connected to the inner side of the vehicle door outer plate;
wherein the tolerance absorption element comprises:
a base mounting ring, which is disposed on the base element as an entirety, and a spiral protrusion is disposed on the inner ring surface of the base connecting ring;
a buckle type connecting seat, which is located on the inner side of the base connecting ring, the buckle type connecting seat is clamped with the base connecting ring, and configured to be inserted into the corresponding mounting hole;
an elastic clamping pin, which is disposed between the base connecting ring and the buckle type connecting seat, connected with the base connecting ring and the buckle type connecting seat, respectively, and configured to elastically deform on a plane parallel to the radial surface of the corresponding mounting hole; and
a stabilizing block, which is disposed with a spiral groove matched with the spiral protrusion in an inserting manner;
inside of the stabilizing block, the elastic clamping pin and the buckle type connecting seat are disposed with through holes configured to allow the bots to penetrate.
