US 12,203,273 B2
Frame for a wall panel, wall panel, and method of manufacture
James M. Smith, Jackson, MI (US); Christopher Michael Colyn, Jackson, MI (US); and David J. Stucky, Grass Lake, MI (US)
Assigned to CertainTeed LLC, Malvern, PA (US)
Filed by CertainTeed LLC, Malvern, PA (US)
Filed on Dec. 19, 2022, as Appl. No. 18/083,874.
Application 18/083,874 is a continuation of application No. 17/150,362, filed on Jan. 15, 2021, granted, now 11,530,538.
Application 17/150,362 is a continuation of application No. 16/368,161, filed on Mar. 28, 2019, granted, now 10,895,077, issued on Jan. 19, 2021.
Claims priority of provisional application 62/650,383, filed on Mar. 30, 2018.
Prior Publication US 2023/0138257 A1, May 4, 2023
Int. Cl. E04F 13/08 (2006.01); B21D 35/00 (2006.01)
CPC E04F 13/0816 (2013.01) [B21D 35/002 (2013.01); E04F 13/0835 (2013.01)] 22 Claims

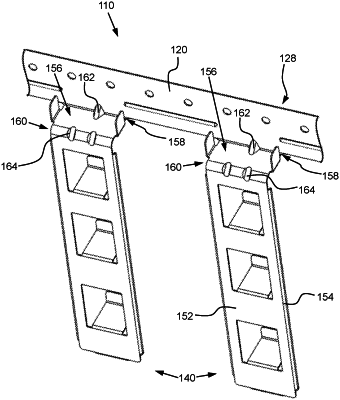

OG exemplary drawing

1. A method of manufacturing a frame for a wall panel, the method comprising:
positioning a first section of a metal sheet in a stamping press;
conducting a first stamping operation using the stamping press to form a first frame segment in the first section of the metal sheet, the first frame segment including a portion of a support strip and a column extending from the support strip;
pitching the metal sheet forward so as to position a second section of the metal sheet in the stamping press;
conducting a second stamping operation using the stamping press to form a second frame segment in the second section of the metal sheet, the second frame segment including another portion of the support strip and another column extending from the support strip, wherein the second frame segment is adjacent to the first frame segment so as to form a line of columns extending from the support strip; and
cutting the frame segments from the metal sheet so as to form the frame.
