US 12,203,042 B2
System and method for hydrothermal carbonization
Andreas Mehli, Chur (CH); and Ignaz Canova, Chur (CH)
Assigned to GREGIO ENERGIE AG, Chur (CH)
Appl. No. 18/285,741
Filed by GREGIO ENERGIE AG, Chur (CH)
PCT Filed Apr. 8, 2022, PCT No. PCT/EP2022/059546
§ 371(c)(1), (2) Date Oct. 5, 2023,
PCT Pub. No. WO2022/218889, PCT Pub. Date Oct. 20, 2022.
Claims priority of application No. 21169026 (EP), filed on Apr. 16, 2021.
Prior Publication US 2024/0199967 A1, Jun. 20, 2024
Int. Cl. F28D 7/12 (2006.01); C10L 9/08 (2006.01); F28D 7/06 (2006.01); F28F 19/01 (2006.01)
CPC C10L 9/086 (2013.01) [C10L 2290/06 (2013.01); C10L 2290/143 (2013.01); C10L 2290/56 (2013.01)] 16 Claims

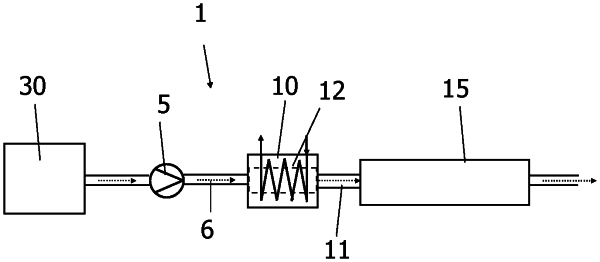

OG exemplary drawing

1. A system for the hydrothermal carbonization of a flowable biomass, comprising a pump, a heat exchanger and a tubular reactor, wherein the pump is connected via a delivery conduit for the flowable biomass to the heat exchanger and wherein the heat exchanger is connected to the tubular reactor via a connecting conduit, wherein the heat exchanger contains an insert element and the tubular reactor contains no insert element, wherein the heat exchanger for heating the flowable biomass comprises a duct for the flowable biomass, wherein the duct comprises an inlet opening and an outlet opening, wherein the duct is surrounded by a heatable duct casing, and wherein the insert element is not connected to an inner wall of the duct casing so that the duct casing and the insert element are configured to be movable relative to each other in the duct.
