| CPC C02F 1/4608 (2013.01) [H05H 1/245 (2021.05); C02F 2001/46152 (2013.01); C02F 2103/02 (2013.01); C02F 2201/002 (2013.01); C02F 2201/48 (2013.01); C02F 2303/04 (2013.01); C02F 2307/06 (2013.01); C02F 2307/14 (2013.01)] | 11 Claims |
|

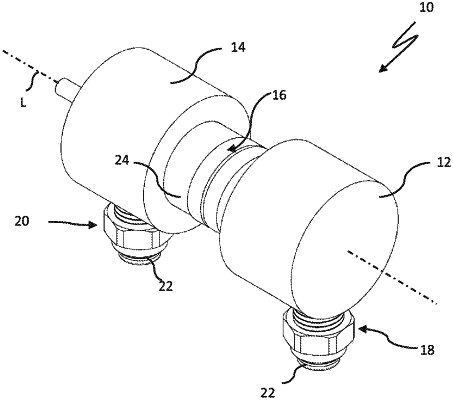

1. A water purifier for home use, irrigation systems used for crop cultivation or the pharmaceutical industry, comprising:
a water inlet for a water to be purified and a water outlet for a purified water;
wherein the water inlet is positioned eccentrically with regards to a longitudinal center axis of the water treatment chamber;
a first and a second housing part and a water treatment chamber disposed in between the first and the second housing parts;
wherein the water treatment chamber is fluidly connected to the water inlet and the water outlet, and wherein the said water treatment chamber is being confined by a chamber wall, wherein the chamber wall has a cylindrical shape;
wherein the water inlet is formed by one of the housing parts and the water outlet is formed by the respective other housing part, wherein the chamber wall, with each of its free ends, is sealingly seated in a bore of both of the housing parts; and
a plasma unit for generating a cold plasma within the water treatment chamber, the plasma unit having a first electrode and a second electrode, wherein the first electrode is arranged inside the water treatment chamber such that, during use of the water purifier, it is contacted by the water and the second electrode, which is disposed spaced apart from the first electrode and electrically insulated therefrom by a dielectric;
wherein an opening area A1 of the water inlet is smaller than an opening area A2 of the water outlet of the water treatment chamber.
|
