| CPC B65D 5/448 (2013.01) [B65D 5/5035 (2013.01); B65D 63/10 (2013.01)] | 6 Claims |
|

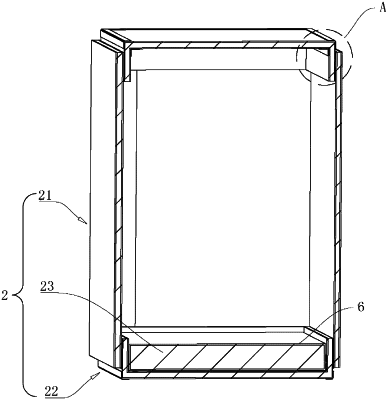

1. A crush-resistant carton, comprising a box body and a plurality of strapping bands, all of the strapping bands being bound outside the box body, wherein the box body comprises an enclosure plate, two cover plates and a bottom backing plate; the two cover plates are respectively positioned at two ends of the enclosure plate in a height direction; each cover plate comprises a main body plate and a plurality of side plates, all of the side plates are disposed around an outer periphery of the main body plate, and a plurality of pressure-resistant slats are respectively disposed on inner and outer sides of a corner portion formed by the main body plate and the side plates adjoined to each other; the bottom backing plate is disposed on an inner sidewall of the cover plate at a lower position,
wherein the pressure-resistant slat is a metal slat;
wherein the pressure-resistant slats are respectively positioned on inner and outer sidewalls of the cover plate;
wherein the pressure-resistant slats positioned on the main body plates are arranged in end-to-end fashion to enclose a rectangular frame;
wherein the enclosure plate comprises two abutment plates, the abutment plates are a corrugated paperboard having an L-shaped at both longitudinal ends; and longitudinal ends of the two abutment plates abut against each other and are slidable relative to each other; the two abutment plates together form the enclosure plate.
|
