US 12,202,501 B2
System and method for limiting maximum acceleration of a motor driven vehicle
Chang Eun Na, Icheon-si (KR); Hyun Seok Jang, Daegu (KR); Byung Jun Sung, Anyang-si (KR); and Seung Ho Choi, Uiwang-si (KR)
Assigned to HYUNDAI MOTOR COMPANY, Seoul (KR); and KIA CORPORATION, Seoul (KR)
Filed by HYUNDAI MOTOR COMPANY, Seoul (KR); and KIA CORPORATION, Seoul (KR)
Filed on Sep. 15, 2022, as Appl. No. 17/945,237.
Claims priority of application No. 10-2021-0122863 (KR), filed on Sep. 15, 2021.
Prior Publication US 2023/0080296 A1, Mar. 16, 2023
Int. Cl. B60W 50/12 (2012.01); B60W 30/14 (2006.01); B60W 40/09 (2012.01); B60W 50/10 (2012.01)
CPC B60W 50/12 (2013.01) [B60W 40/09 (2013.01); B60W 50/10 (2013.01); B60W 2510/084 (2013.01); B60W 2540/30 (2013.01)] 15 Claims

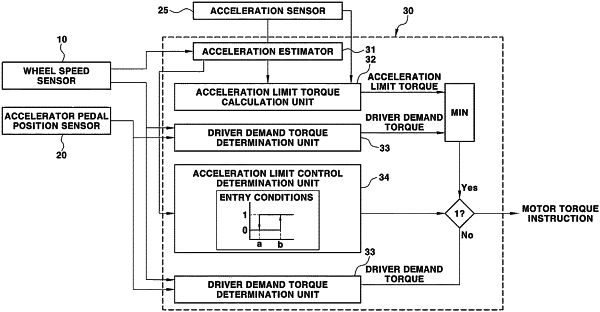

OG exemplary drawing

1. A system for limiting a maximum acceleration of a motor driven vehicle, the system comprising:
a wheel speed sensor configured to detect a vehicle speed of the motor driven vehicle;
an accelerator pedal position sensor configured to detect an amount of accelerator pedal depression; and
a control unit configured to:
estimate an acceleration based on the vehicle speed detected by the wheel speed sensor, and
control a motor torque to be an acceleration limit torque, thereby limiting an acceleration of the motor driven vehicle to a target acceleration when the estimated acceleration is equal to or higher than a reference acceleration.
