| CPC B60K 35/00 (2013.01) [B60K 35/22 (2024.01); B60K 35/23 (2024.01); B60K 35/60 (2024.01); B60K 2360/1526 (2024.01); B60K 2360/29 (2024.01); B60K 2360/333 (2024.01); B60K 2360/785 (2024.01); B60Y 2200/11 (2013.01)] | 20 Claims |
|

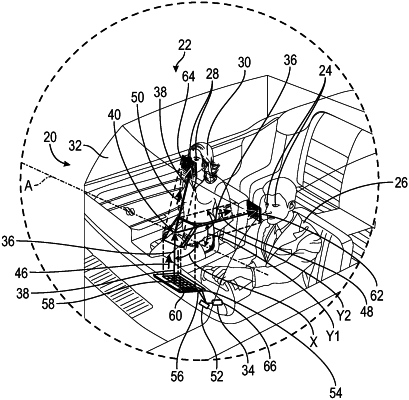

1. A head-up display system of a vehicle for visually transmitting information to eyes of a first occupant and eyes of a second occupant, comprising:
an illumination device configured to emit a first display light having a first polarization and a second display light having a second polarization;
a windshield spaced from the illumination device and extending transverse to the first and second display lights; and
a holographic panel coupled to and extending with the windshield and comprising a first layer and a second layer;
wherein the first and second display lights emit toward the holographic panel in an entrance direction at an entrance angle relative to an axis normal to the holographic panel;
wherein the first layer is arranged to diffract the first display light having the first polarization in a first exit direction at a first exit angle relative to the axis toward the eyes of the first occupant; and
wherein the second layer is arranged to diffract the second display light having the second polarization in a second exit direction at a second exit angle relative to the axis, and different than the first exit angle, toward the eyes of the second occupant.
|
