US 12,202,289 B2
Sublimation layup sheet and method of sublimating ink
Alesha Younkin, South Jordan, UT (US); Cindy Chen, Shenzhen (CN); Elaine Yi, Shenzen (CN); Yan Xiaohan, Shenzen (CN); and Danielle Cordsen, South Jordan, UT (US)
Assigned to Cricut, Inc., South Jordan, UT (US)
Appl. No. 17/615,752
Filed by Cricut, Inc., South Jordan, UT (US)
PCT Filed Jun. 2, 2020, PCT No. PCT/US2020/035696
§ 371(c)(1), (2) Date Dec. 1, 2021,
PCT Pub. No. WO2020/247368, PCT Pub. Date Dec. 10, 2020.
Claims priority of provisional application 62/856,502, filed on Jun. 3, 2019.
Prior Publication US 2022/0305830 A1, Sep. 29, 2022
Int. Cl. B41M 5/035 (2006.01); B41M 5/41 (2006.01); B41M 5/42 (2006.01)
CPC B41M 5/035 (2013.01) [B41M 5/41 (2013.01); B41M 5/42 (2013.01); B41M 2205/02 (2013.01); B41M 2205/30 (2013.01); B41M 2205/38 (2013.01)] 14 Claims

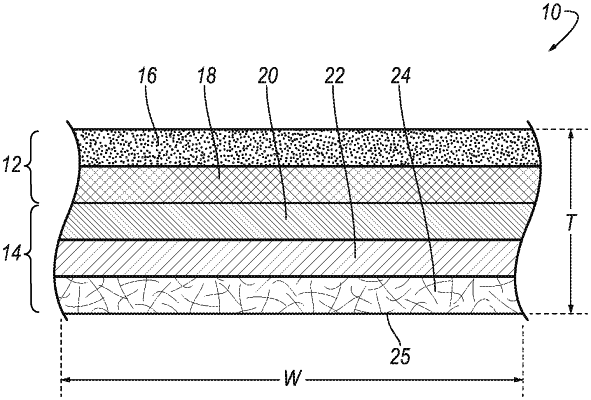

OG exemplary drawing

1. A layup sheet, comprising:
a sublimation material layer comprising sublimation ink;
a paper-based carrier layer;
a laminate layer;
an adhesive layer; and
a backing layer;
wherein:
the paper-based carrier layer is disposed between the sublimation material layer and the laminate layer;
the laminate layer is disposed between the paper-based carrier layer and the adhesive layer;
the adhesive layer is disposed between the laminate layer and the backing layer;
the adhesive layer remains applied to the backing layer while releasably securing the laminate layer to the backing layer; and
the layup sheet is configured to enable transfer of the sublimation ink, by sublimation, from the layup sheet into a separate article.
