US 12,202,251 B2
Dryer management system and method of drying a material deposited on a web
Alan Ronald Murzynowski, Grand Island, NY (US); Theodore F. Cyman, Grand Island, NY (US); Daniel Edward Kanfoush, Grand Island, NY (US); Anthony Vincent Moscato, N. Tonawanda, NY (US); and Brett Christopher Rimes, Grand Island, NY (US)
Assigned to Cryovac, LLC, Charlotte, NC (US)
Appl. No. 17/910,450
Filed by Cryovac, LLC, Charlotte, NC (US)
PCT Filed Mar. 11, 2021, PCT No. PCT/US2021/021859
§ 371(c)(1), (2) Date Sep. 9, 2022,
PCT Pub. No. WO2021/183738, PCT Pub. Date Sep. 16, 2021.
Claims priority of provisional application 62/988,504, filed on Mar. 12, 2020.
Prior Publication US 2023/0127632 A1, Apr. 27, 2023
Int. Cl. B41J 11/00 (2006.01); B41J 2/375 (2006.01)
CPC B41J 11/00222 (2021.01) [B41J 2/375 (2013.01); B41J 2203/01 (2020.08)] 19 Claims

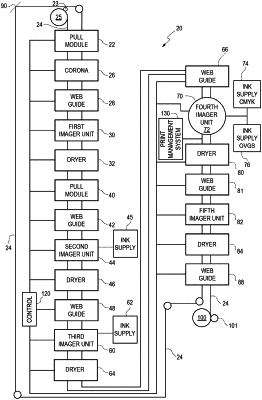

OG exemplary drawing

1. A dryer management system to manage drying a material deposited on a web, comprising:
a web transport adapted to convey the web;
a dryer unit associated with and disposed downstream of an imager unit having at least one heater unit adapted to generate a flow of heated air to heat the web;
a temperature sensing device disposed proximate the web to develop an indication of a temperature of the web as the web is convey past the heater unit; and
a closed-loop dryer controller that monitors the indication of the temperature developed by the temperature sensing device and sufficiency of drying of material deposited on the web and adjusts operation of the heater unit to sufficiently dry the material deposited on the web and maintain the indication of the temperature developed by the temperature sensing device below a maximum temperature; and
a camera disposed downstream of the dryer unit, wherein the closed-loop dryer controller receives an image of the web from the camera, analyzes the received image to detect insufficient drying of the material deposited on the web, and in response adjusts operation of the heater unit.
