US 12,201,807 B2
Medical infusion pump treatment identification
Hans Utz, Decatur, GA (US)
Assigned to CHS HEALTHCARE VENTURES, INC., Decatur, GA (US)
Filed by CHS HEALTHCARE VENTURES, INC., Decatur, GA (US)
Filed on Apr. 15, 2021, as Appl. No. 17/231,360.
Application 17/231,360 is a continuation of application No. 16/548,347, filed on Aug. 22, 2019, granted, now 11,007,315.
Prior Publication US 2021/0228796 A1, Jul. 29, 2021
Int. Cl. A61M 5/14 (2006.01); A61M 5/142 (2006.01); A61M 5/168 (2006.01); A61M 5/172 (2006.01); G16H 20/17 (2018.01)
CPC A61M 5/142 (2013.01) [A61M 5/16827 (2013.01); A61M 5/172 (2013.01); A61M 5/1415 (2013.01); A61M 2005/14208 (2013.01); A61M 5/16877 (2013.01); A61M 2205/587 (2013.01); A61M 2205/6009 (2013.01); A61M 2205/6063 (2013.01); G16H 20/17 (2018.01)] 13 Claims

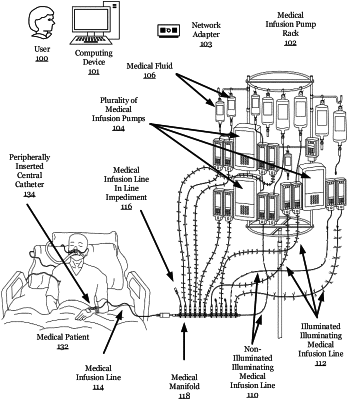

OG exemplary drawing

1. A system for administering a medical fluid treatment plan, comprising:
a medical infusion pump, comprising:
a power supply;
a user interface;
a pump with a fluid channel;
an illumination module that produces light, wherein the illumination module is capable of varying the color of light, brightness of the light, and pattern of the light based on the medical fluid treatment plan;
an emergency indicator;
an illuminating medical infusion line, wherein the illuminating medical infusion line has a fluid transmission channel that is connected to the fluid channel of the pump on the medical infusion pump and a light transmission channel that is configured to receive the light from the illumination module of the medical infusion pump;
a computing device, comprising:
a network adapter configured to electronically communicate with the medical infusion pump;
a software application executing on non-transitory memory of the computing device, the software application configured with a medical fluid treatment plan, wherein the medical fluid treatment plan is a set of medical fluids to be administered to a patient, and through the network adapter transmits the medical fluid treatment plan to the medical infusion pump where the user interface of the medical infusion pump displays the medical treatment plan and the illumination module illuminates the light transmission channel of the medical infusion line in respect to the medical fluid treatment plan; and
a display, wherein the display projects the medical fluid treatment plan.
