US 12,201,305 B2
System and method for driving an ultrasonic device
Daniele Venturini, Povegliano Veronese (IT); Mario Donnici, Bussolengo (IT); Pieralbino Colombo, Treviglio (IT); Alessandro Finezzo, Verona (IT); and Gianluca Zandona', Verona (IT)
Assigned to Orthofix S.R.L., Bussolengo (IT)
Filed by ORTHOFIX S.R.L., Bussolengo (IT)
Filed on Sep. 26, 2023, as Appl. No. 18/474,757.
Application 18/474,757 is a continuation of application No. 16/717,841, filed on Dec. 17, 2019, granted, now 11,801,059.
Claims priority of application No. 19158490 (EP), filed on Feb. 21, 2019.
Prior Publication US 2024/0050103 A1, Feb. 15, 2024
This patent is subject to a terminal disclaimer.
Int. Cl. A61B 17/16 (2006.01); A61B 17/32 (2006.01); A61B 17/88 (2006.01); A61B 18/14 (2006.01); A61B 17/00 (2006.01); A61B 90/98 (2016.01)
CPC A61B 17/1626 (2013.01) [A61B 17/320068 (2013.01); A61B 17/8847 (2013.01); A61B 18/1492 (2013.01); A61B 2017/0003 (2013.01); A61B 2017/00084 (2013.01); A61B 2017/00119 (2013.01); A61B 2017/00402 (2013.01); A61B 18/149 (2013.01); A61B 90/98 (2016.02)] 8 Claims

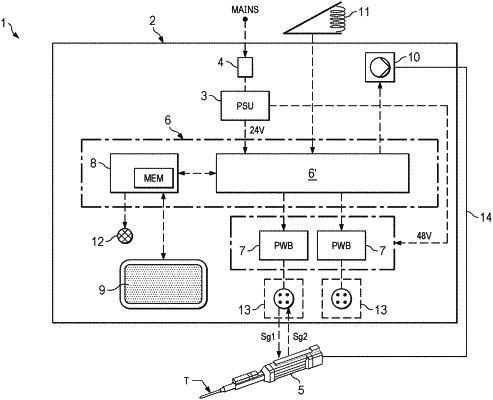

OG exemplary drawing

1. A method for driving an ultrasonic device for bone cement removal and/or osteotomy operations, comprising the steps of:
establishing at least a data connection between a control unit and a handset of the ultrasonic device;
sending a signal to the handset;
receiving from the handset a response to the sent signal; and
checking an operating condition of the ultrasonic device based on said response,
wherein the sending step comprises sending to the handset the signal in the form of a signal having a frequency variable within a frequency range, and wherein the checking step comprises calculating at least one parameter indicative of a frequency response of the ultrasonic device,
wherein the calculated parameter is the variation in impedance as a function of the frequency of said signal, providing an impedance curve representing the frequency response of the ultrasonic device, and
wherein the checking step comprises performing an analysis of the whole measured impedance curve, said analysis being based on reference models.
