US 12,201,139 B2
Heat-not-burn device and method
Alexander Chinhak Chong, St. Louis Park, MN (US); William Bartkowski, Edina, MN (US); David Crosby, Watsonville, CA (US); and David Wayne, Aptos, CA (US)
Filed by CQENS Technologies Inc., Minneapolis, MN (US)
Filed on Nov. 1, 2022, as Appl. No. 18/051,854.
Application 18/051,854 is a continuation of application No. 17/484,874, filed on Sep. 24, 2021, granted, now 11,606,969.
Application 17/484,874 is a continuation of application No. 17/001,348, filed on Aug. 24, 2020, granted, now 11,632,981.
Application 17/001,348 is a continuation of application No. 16/022,482, filed on Jun. 28, 2018, granted, now 10,750,787, issued on Aug. 25, 2020.
Claims priority of provisional application 62/613,355, filed on Jan. 3, 2018.
Prior Publication US 2023/0091696 A1, Mar. 23, 2023
This patent is subject to a terminal disclaimer.
Int. Cl. A24F 47/00 (2020.01); A24C 5/01 (2020.01); A24D 1/00 (2020.01); A24D 1/02 (2006.01); A24D 1/20 (2020.01); A24D 3/10 (2006.01); A24D 3/17 (2020.01); A24F 7/04 (2006.01); A24F 40/465 (2020.01); A61M 15/00 (2006.01); A61M 15/06 (2006.01); H05B 6/10 (2006.01); A24F 40/20 (2020.01); A24F 40/53 (2020.01); H04M 1/72412 (2021.01); H04W 4/80 (2018.01)
CPC A24D 1/002 (2013.01) [A24C 5/01 (2020.01); A24D 1/02 (2013.01); A24D 1/20 (2020.01); A24D 3/10 (2013.01); A24D 3/17 (2020.01); A24F 7/04 (2013.01); A24F 40/465 (2020.01); A61M 15/0021 (2014.02); A61M 15/06 (2013.01); H05B 6/105 (2013.01); A24F 40/20 (2020.01); A24F 40/53 (2020.01); A61M 2205/3584 (2013.01); A61M 2205/3653 (2013.01); H04M 1/72412 (2021.01); H04W 4/80 (2018.02)] 17 Claims

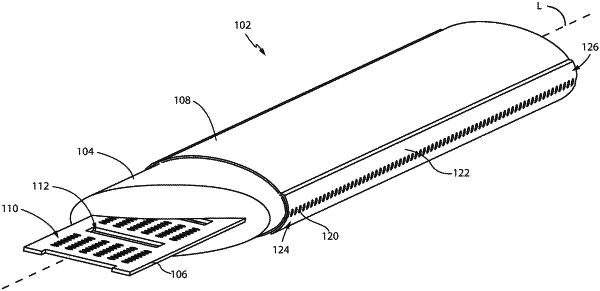

OG exemplary drawing

1. A device, comprising:
a) a consumable-containing unit comprising compressed powder;
b) a susceptor embedded within the consumable-containing unit;
c) an encasement encasing the consumable-containing unit and the susceptor;
d) a housing to contain the encasement;
e) an inductive heating element configured and programmed to selectively heat the susceptor to a predetermined temperature, the predetermined temperature being sufficient to release aerosol from the compressed consumable-containing unit, wherein the predetermined temperature is from about 550 degrees C. to about 800 degrees C.
