US D1,057,154 S
Instrument handle
Matthew L. Cantwell, Orange Park, FL (US); John R. Prisco, Canton, GA (US); and Amber A. Katada, Jacksonville, FL (US)
Assigned to Medtronic Xomed, Inc., Jacksonville, FL (US)
Filed by Medtronic Xomed, Inc., Jacksonville, FL (US)
Filed on Jun. 27, 2022, as Appl. No. 29/844,078.
Application 29/844,078 is a continuation in part of application No. 17/178,848, filed on Feb. 18, 2021, granted, now 11,992,679.
Term of patent 15 Years
LOC (15) Cl. 24 - 02
U.S. Cl. D24—133

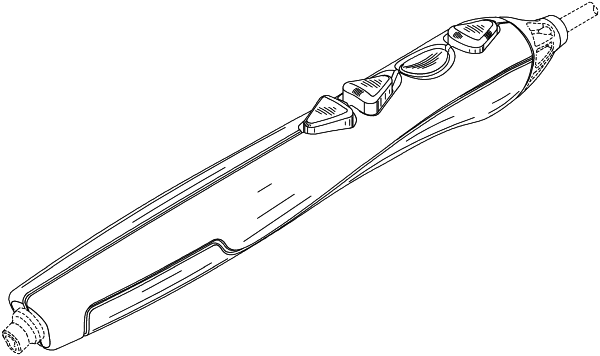

OG exemplary drawing

The ornamental design for an instrument handle, as shown and described.
