US D1,057,103 S
Tub spout
David Downey, Mission Viejo, CA (US); Bingo Wang, Xiamen (CN); Andy Kim, Lake Forest, CA (US); and Michael Ross, Winter Park, FL (US)
Assigned to ASSA ABLOY Americas Residential Inc., New Haven, CT (US)
Filed by ASSA ABLOY Americas Residential Inc., New Haven, CT (US)
Filed on Mar. 29, 2022, as Appl. No. 29/832,596.
Term of patent 15 Years
LOC (15) Cl. 23 - 01
U.S. Cl. D23—257

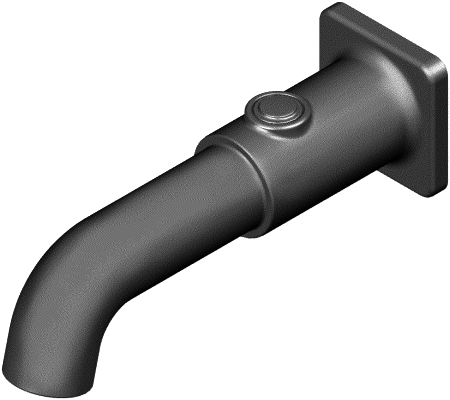

OG exemplary drawing

The ornamental design for a tub spout as shown and described.
