US D1,056,974 S
Cutting insert for machine tools for metalworking
Sung Hun Kim, Cheongju-si (KR); Byung Hoon Min, Cheongju-si (KR); and Young Heum Kim, Cheongju-si (KR)
Filed by KORLOY INC., Seoul (KR)
Filed on Apr. 4, 2023, as Appl. No. 35/517,227.
Claims priority of application No. 30-2022-0047149 (KR), filed on Nov. 15, 2022.
Int. Filing Date Apr. 4, 2023
Int. Reg. No. DM/228786
Int. Reg. Date Apr. 4, 2023
Int. Reg. Pub. Date May 19, 2023
Term of patent 15 Years
LOC (15) Cl. 15 - 09
U.S. Cl. D15—139

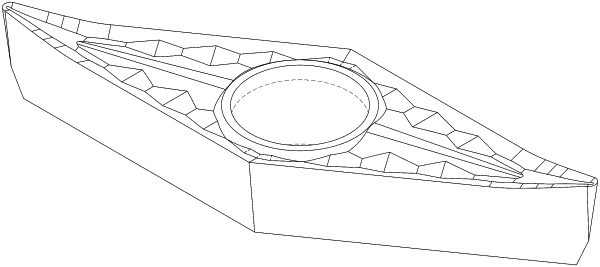

OG exemplary drawing

The ornamental design for a cutting insert for machine tools for metalworking as shown and described.
