US D1,056,654 S
Extraction tool
Jimmy Karlsson, Sjuntorp (SE)
Assigned to WIRETRONIC AB, Vänersborg (SE)
Filed by Wiretronic AB, Vänersborg (SE)
Filed on Dec. 15, 2022, as Appl. No. 29/863,118.
Term of patent 15 Years
LOC (15) Cl. 08 - 05
U.S. Cl. D 8—107

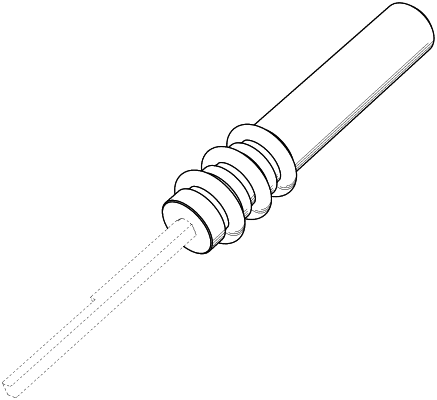

OG exemplary drawing

The ornamental design for an extraction tool, as shown and described.
