US 12,193,192 B2
Cavities for center-pinned actuator cooling systems
Suryaprakash Ganti, Los Altos, CA (US); Sangkyu Kim, Los Altos, CA (US); Vikram Mukundan, San Ramon, CA (US); Prathima Kapa, Dublin, CA (US); Ji Hoon Kim, Redwood City, CA (US); and Wen-Sheng Chan, Zhubei (TW)
Assigned to Frore Systems Inc., San Jose, CA (US)
Filed by Frore Systems Inc., San Jose, CA (US)
Filed on Mar. 5, 2024, as Appl. No. 18/596,562.
Application 18/596,562 is a continuation in part of application No. 18/370,732, filed on Sep. 20, 2023.
Application 18/596,562 is a continuation in part of application No. 17/890,917, filed on Aug. 18, 2022.
Application 18/370,732 is a continuation of application No. 17/464,422, filed on Sep. 1, 2021, granted, now 11,503,742, issued on Nov. 15, 2022.
Application 18/370,732 is a continuation of application No. 17/367,057, filed on Jul. 2, 2021, granted, now 11,796,262, issued on Oct. 24, 2023.
Application 17/464,422 is a continuation of application No. 17/023,215, filed on Sep. 16, 2020, granted, now 11,510,341, issued on Nov. 22, 2022.
Application 17/023,215 is a continuation in part of application No. 16/915,912, filed on Jun. 29, 2020, granted, now 11,464,140, issued on Oct. 4, 2022.
Application 17/367,057 is a continuation in part of application No. 16/915,912, filed on Jun. 29, 2020, granted, now 11,464,140, issued on Oct. 4, 2022.
Claims priority of provisional application 63/547,653, filed on Nov. 7, 2023.
Claims priority of provisional application 62/945,001, filed on Dec. 6, 2019.
Prior Publication US 2024/0215204 A1, Jun. 27, 2024
Int. Cl. H05K 7/20 (2006.01)
CPC H05K 7/20509 (2013.01) [H05K 7/20254 (2013.01); H05K 7/20418 (2013.01)] 17 Claims

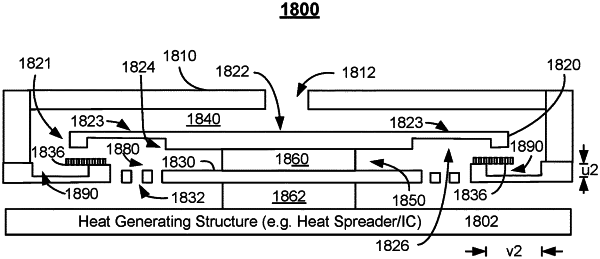

OG exemplary drawing

1. A flow chamber, comprising:
an upper chamber including a top wall;
an actuator located distally from the top wall; and
a lower chamber including a bottom wall and a sidewall, the lower chamber receiving a fluid from the upper chamber when the actuator is activated, the bottom wall having a plurality of orifices therein, the plurality of orifices being vertically aligned with a portion of the actuator and allowing the fluid to exit the lower chamber;
wherein the bottom wall includes at least one cavity therein, the at least one cavity being proximate to the sidewall and distally located from the plurality of orifices;
wherein the actuator includes an anchored region coupled to a support structure and a cantilevered arm, the cantilevered arm including a step region and an extension region, the step region having a step thickness, the extension region extending outward from the step region and having an extension thickness less than the step thickness.
